MÁY UỐN ỐNG THỦY LỰC 3/8-2 INCH

Version:

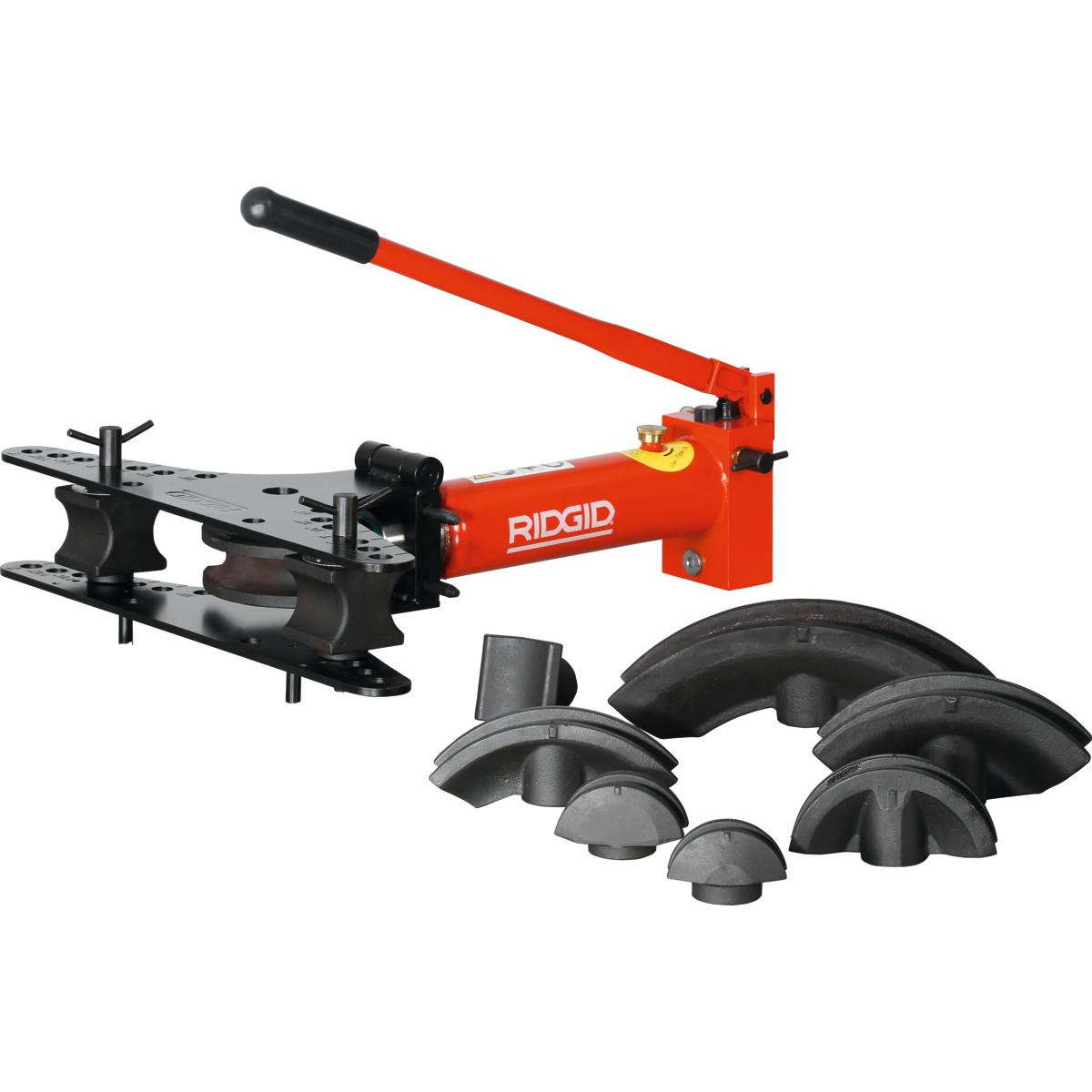

Sturdy hydraulic pipe bender with closed-loop hydraulic system and return spring for better piston control. Cast iron slide blocks and bending formers, high-performance piston with 450 bar working pressure. High-quality piston seals prevent leakage and extend the working life. Slide blocks feature bending angle indicator. Safe bending of pipes with closed-loop system. Special lever design prevents overloading. Supplied in a lockable wooden case.

Application:

For bending galvanised and black steel pipes and also gas pipes (3/8 inch − 2 inch). Bending angles up to 90°, pipes up to maximum 5. 5 mm wall thickness (2 inch pipe). User-friendly operation thanks to a long piston stroke for each pump stroke. General-purpose use in machine tool and plant installation, working on pipework systems, fitting work etc.

Content:

1 each bending segment No.

821155:

Size 3/8; 1/2; 3/4; 1; 1. 1/4; 1. 1/2; 2Slide block No.

821156:

2 pcs.

hydraulic pipe bender:

1 pc.

Support wheels:

3 pcs.

Thông tin kỹ thuật
