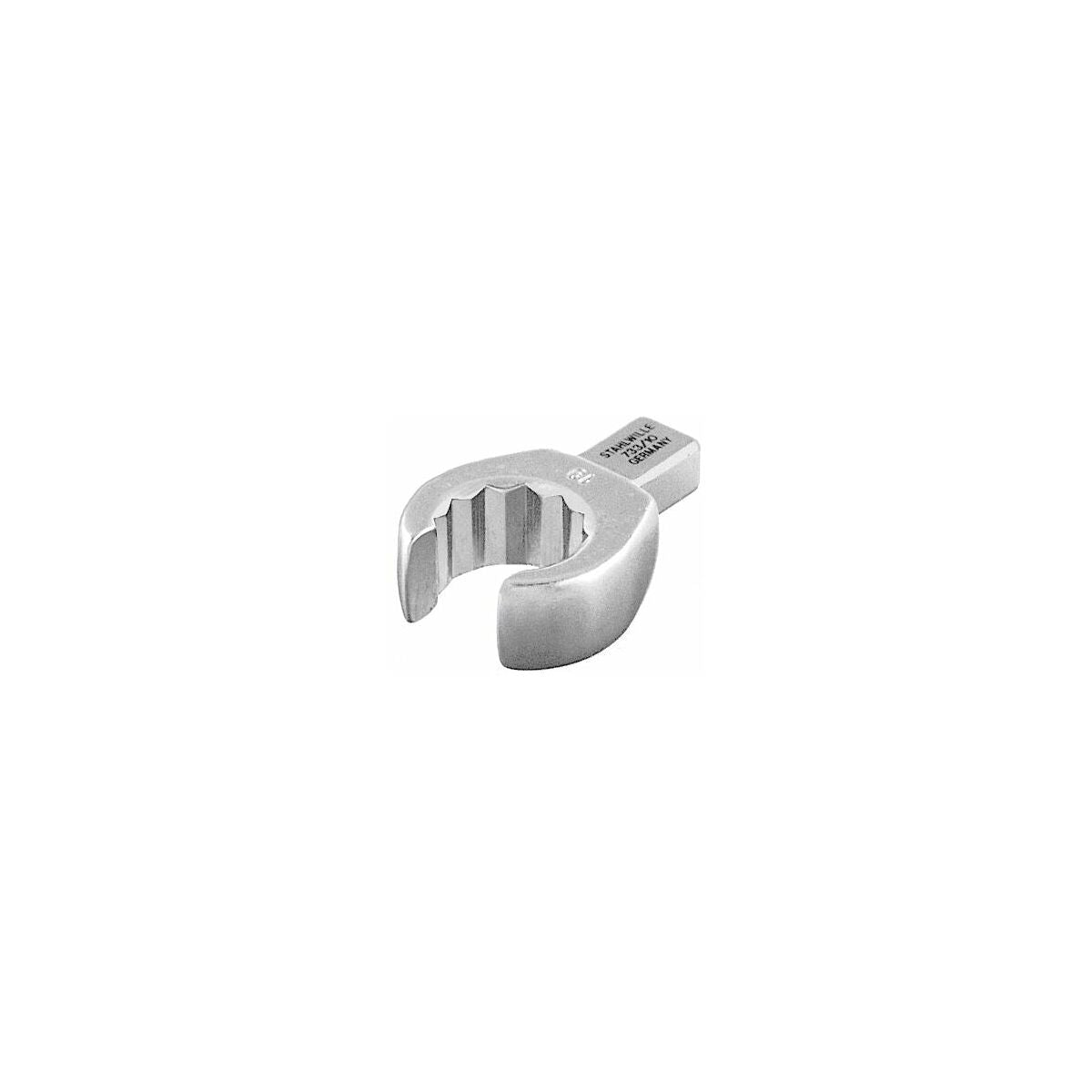

ĐẦU CỜ LÊ MIỆNG 10 CẠNH SIZE 1 - 17MM STAHLWILLE (Ổ CẮM VUÔNG 9X12) 657910 | 58231017

Liên hệ

Mã sản phẩm: 657910 1-17
Thương hiệu: Stahlwille
Công nghệ:
Xuất xứ:
Bảo hành: Default Title
Trọng lượng:

Version:Drop-forged; all plug-in heads = Rectangular shank with spring retaining pin. This ensures a solid and secure fit of the plug-in head in the torque wrench.Material:Chrome alloy steel, non-flak...

Version:

Drop-forged; all plug-in heads = Rectangular shank with spring retaining pin. This ensures a solid and secure fit of the plug-in head in the torque wrench.

Material:

Chrome alloy steel, non-flaking, chrome-plated over nickel.

Cutting data:

Legend for drawing and formula:

l1 = Lever length without plug-in headl2 = Adjusted reference dimension on the torque wrenchl3 = Lever length including factory calibration reference dimensionl4 = Reference dimension of the plug-in headL = Total length of the toolT1 = Torque to be setT2 = Specified torque Suitable for:

Torque wrench with rectangular sockets.

Note:

The rated load on this plug-in head is limited to the corresponding jaw width, and may be less than that of the torque wrench. Please note the pitch of the plug-in head and match this to that of the adjustment tool (see test certificate/operating instructions of the torque wrench you are using). If these vary, correct the pitch!

Thông tin kỹ thuật

Mô tả

Version:

Drop-forged; all plug-in heads = Rectangular shank with spring retaining pin. This ensures a solid and secure fit of the plug-in head in the torque wrench.

Material:

Chrome alloy steel, non-flaking, chrome-plated over nickel.

Cutting data:

Legend for drawing and formula:

l1 = Lever length without plug-in headl2 = Adjusted reference dimension on the torque wrenchl3 = Lever length including factory calibration reference dimensionl4 = Reference dimension of the plug-in headL = Total length of the toolT1 = Torque to be setT2 = Specified torque Suitable for:

Torque wrench with rectangular sockets.

Note:
