CẦN SIẾT 400 NM CÓ CHỈNH LỰC STAHLWILLE 50181040 MANOSKOP® 730N | 50181040

Version:

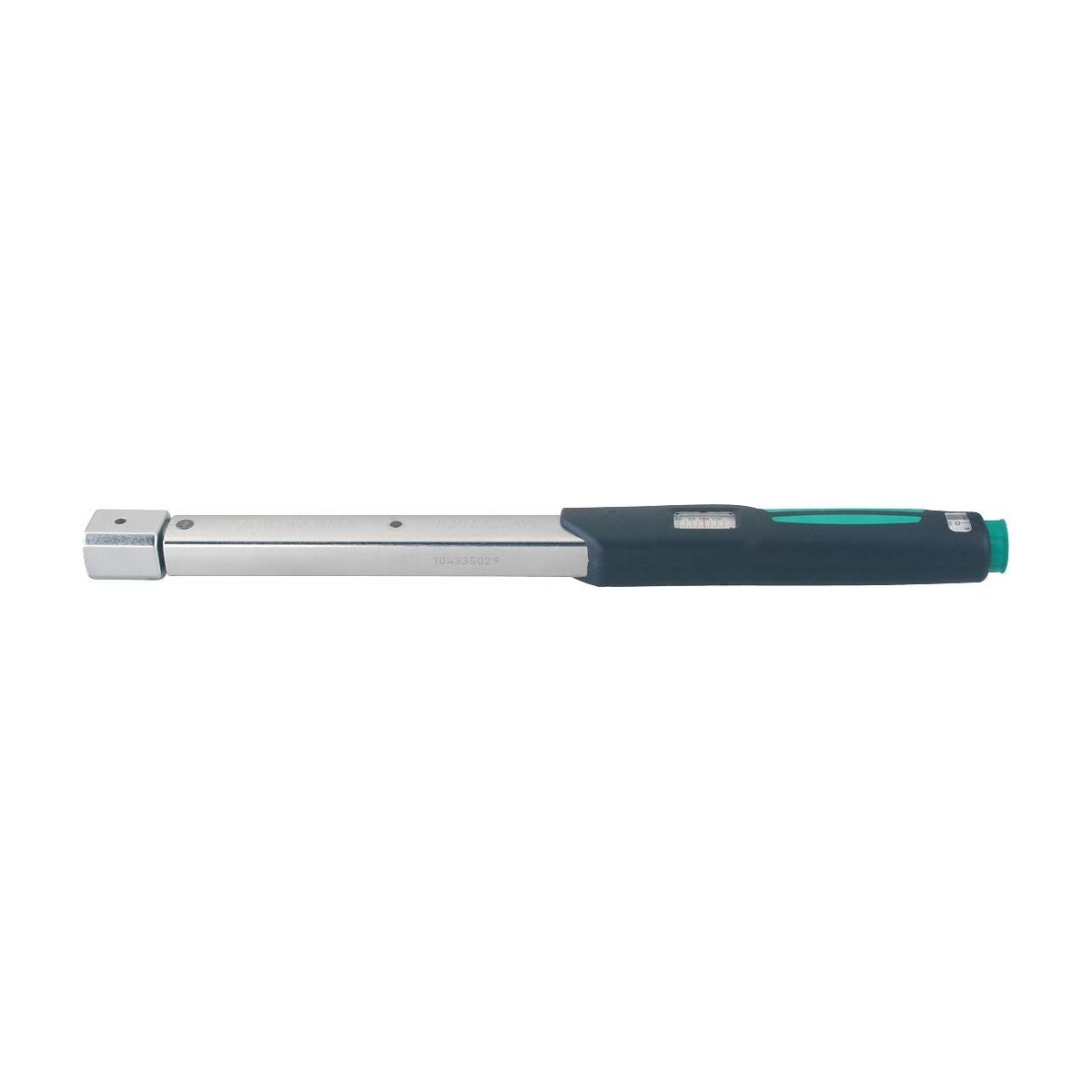

Sturdy compact one-armed torque wrench, adjustable to scale and self-triggering. The accuracy is sustained for many thousands of operations, because high quality material is used for all wearing parts and the flexible rod is under load only briefly on each occasion. Body and handle are of sturdy square section. Scales adjustable. Anti-clockwise tightening by reversing the plug-in tools. Without any plug-in head (basic model); see No. 657582 − 657950 for suitable plug-in heads.

Units of measure:

Nm, lbfft.

Advantage:

Ergonomically shaped two-component handle, resistant to aggressive liquids such as fuel, Skydrol etc. The adjustment scale is placed behind a sight glass for protection against dirt and damage.

Quick, precise, and reliable setting:

Pull the setting knob, “Twist” to set the desired value and “Press” to save it. Setting knob moves easily since there is no spring pressure to be overcome.

Function:

If the set value is reached while using the wrench, the wrench triggers giving a “signal” (acoustic and perceptible) and is then immediately ready for use again.

Application:

Since the set torque can be varied, it is ideal for repairs and short series production.

Standard:

Tested to DIN EN ISO 6789.

Cutting data:

Legend for drawing and formula:

l1 = Lever length without plug-in headl2 = Adjusted reference dimension on the torque wrenchl3 = Lever length including factory calibration reference dimensionl4 = Reference dimension of the plug-in headL = Total length of the toolT1 = Torque to be setT2 = Specified torque Note:

The guaranteed measuring accuracy of the torque is achieved only once the torque range has been calibrated to DIN EN ISO 6789.
