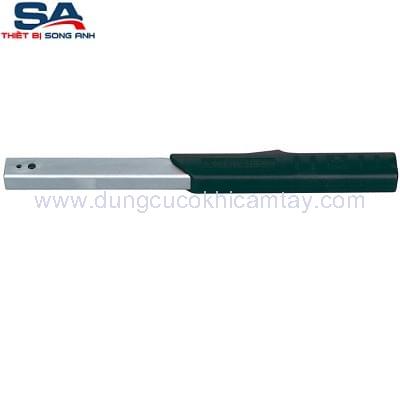

Cần xiết chỉnh lực Stahlwille 755

Cần xiết chỉnh lực 4-300Nm Stahlwille 755.

Mã hàng: 50010004, 50010010, 50010020, 50010030.

Thông số kỹ thuật:

755 Basic wrenches with tool carrier for insert tool

Code	Size				b	h	L	LF	SF
				mm	mm	mm	mm	mm	mm	g
50010004	4	4–40 N m	4–30 ft.lb		22	18	201	172	17.5	522
50010010	10	20–100 N m	15–74 ft.lb		28	24	318	289	17.5	635
50010020	20	40–200 N m	30–147 ft.lb		28	24	457	435	25	1060
50010030	30	60–300 N m	40–220 ft.lb		28	24	609	587	25	1210

Industrial MANOSKOP® 755
• For work on production lines or series production. No setting scale; have to be set with a tester such as the STAHLWILLE No 7707 W tester or the No 7794, No 7706 calibration system.
• cut-out type
• mount for interchangeable insert tools
• dual stop signal
• particularly light and easy to handle
• handle and shank are made of square tubular steel
• any force applied to the tool after the ‘click’ or applied in the opposite direction to the current function (up to the max. of the wrench’s range) does not act on the trigger mechanism and cannot cause damage to it.
• anticlockwise torquing thanks to swap-over insert tools
• with preset cut-out value on request (price on application)
• display deviation value ± 4%
