BỘ LẮP ĐẶT Ổ BI 884000

Version:

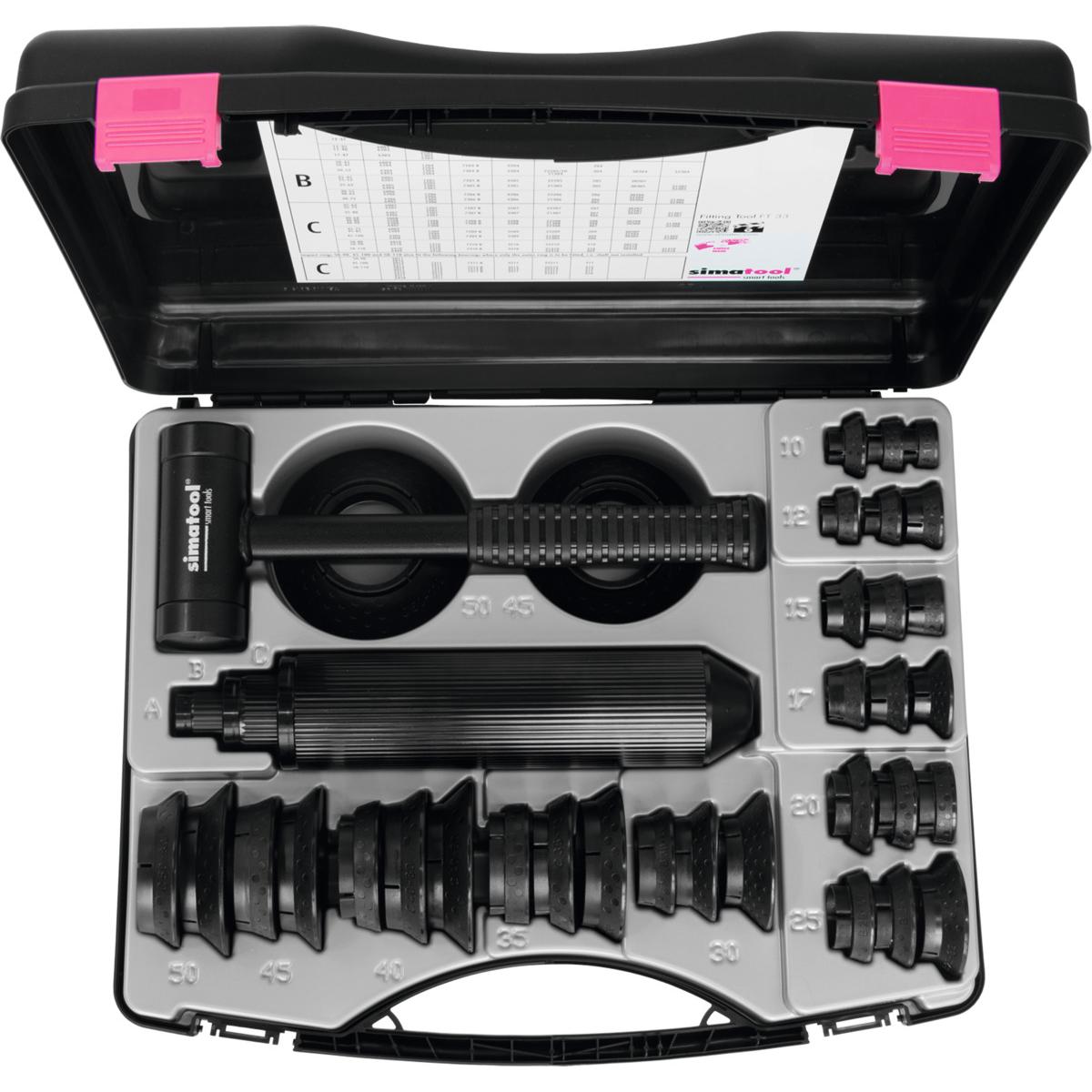

Light but very robust aluminium impact sleeves in combination with 33 extremely impact resistant striking rings for bearing external ⌀ from 26 - 110 mm and internal ⌀ from 10 - 50 mm. Dead-blow hammer with nylon inserts. Supplied in a plastic case.

Application:

Quick, precise, and safe installation of (roller) bearings thanks to even application of force on the bearing. Also suitable for fitting of bushes, sealing rings, and pulleys.

Content:

3 impact sleeves, ⌀ 25; 40; 60 mm. 1 set striking rings internal ⌀ 10 mm (external ⌀ 26; 30; 35 mm)1 set striking rings internal ⌀ 12 mm (external ⌀ 28; 32; 37 mm)1 set striking rings internal ⌀ 15 mm (external ⌀ 32; 35; 42 mm)1 set striking rings internal ⌀ 17 mm (external ⌀ 35; 40; 47 mm)1 set striking rings internal ⌀ 20 mm (external ⌀ 42; 47; 52 mm)1 set striking rings internal ⌀ 25 mm (external ⌀ 47; 52; 62 mm)1 set striking rings internal ⌀ 30 mm (external ⌀ 55; 62; 72 mm)1 set striking rings internal ⌀ 35 mm (external ⌀ 62; 72; 80 mm)1 set striking rings internal ⌀ 40 mm (external ⌀ 68; 80; 90 mm)1 set striking rings internal ⌀ 45 mm (external ⌀ 75; 85; 100 mm)1 set striking rings internal ⌀ 50 mm (external ⌀ 80; 90; 110 mm).
