BỘ CẢO VÒNG BI TRONG KUKKO L-BOXX® K70C

Version:

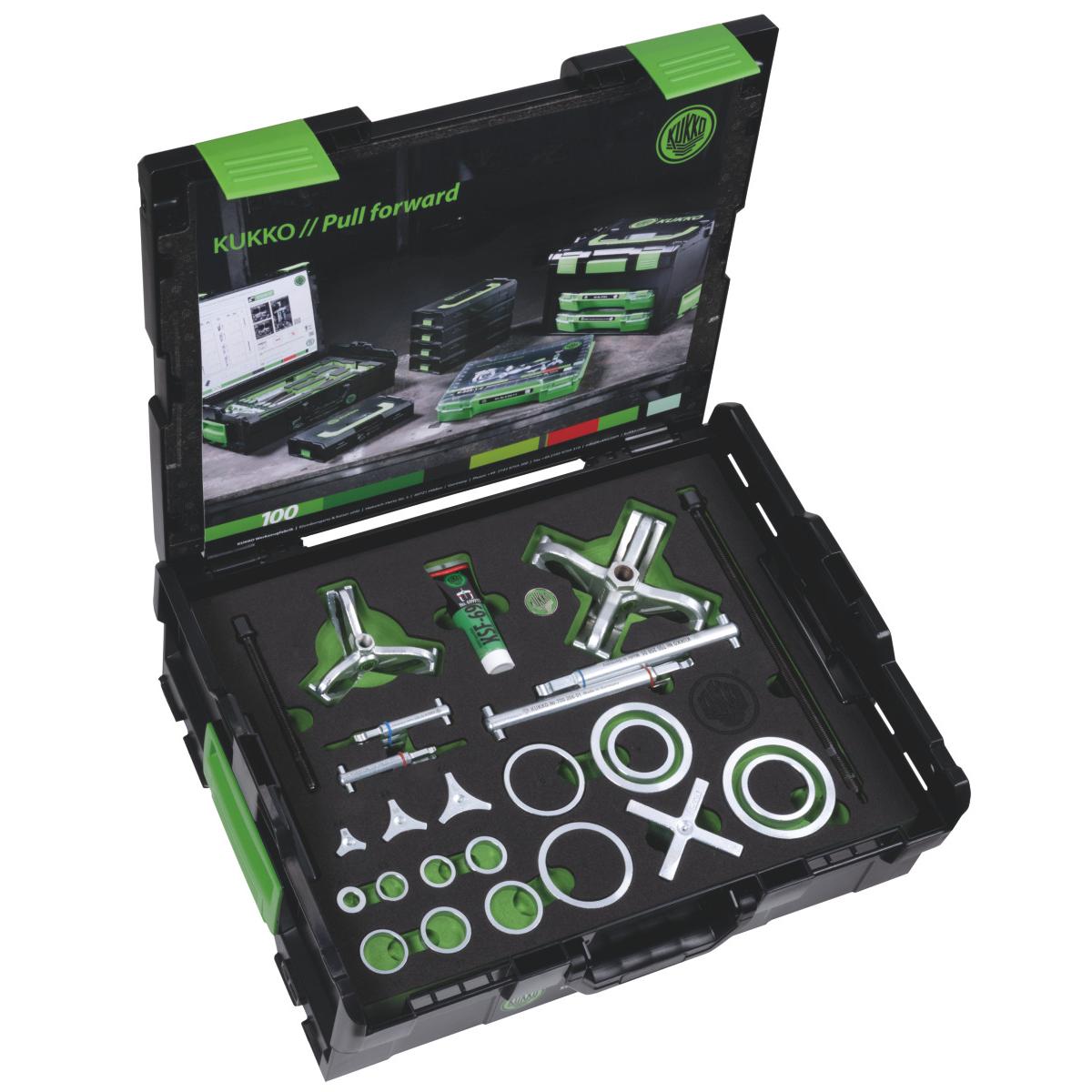

Extractor set in KUKKO L-BOXX® size 136, consisting of one base body with spindle (120 mm long) and 3 each narrow and wide extractor hooks (each 70 mm long) and one base body with spindle (240 mm long) and 4 each narrow and wide extractor hooks (each 156 mm long).

Application:

For non-destructive extraction of grooved ball bearings from a housing on a shaft by gripping them between inner and outer ball races.

Suitable for:

Ball bearings to ISO:

6000 − 6020; 6200 − 6212; 6300 − 6311; 6403 − 6408 Content:

1 set of extractor hooks, 3 pieces, 150 mm long(for ball bearings 6000, 6001, 6002, 6003, 6200). 1 set of extractor hooks 3-piece 150 mm long(for ball bearings 6004, 6005, 6201, 6202, 6203, 6300). 1 set of extractor hooks 3-piece 170 mm long(for ball bearings 6204, 6205, 6301, 6302, 6303). 1 set of extractor hooks 4-piece 180 mm long(for ball bearings 6007, 6008, 6009, 6010, 6013). 1 set of extractor hooks 4-piece 180 mm long(for ball bearings 6011, 6012, 6206, 6207, 6304, 6305, 6306). 1 set of extractor hooks 4-piece 217 mm long(for ball bearings 6208, 6209, 6210, 6307, 6403, 6407). 1 set of extractor hooks 4-piece 217 mm long(for ball bearings 6211, 6212, 6308, 6309, 6310, 6311, 6404, 6405, 6406, 6408).
