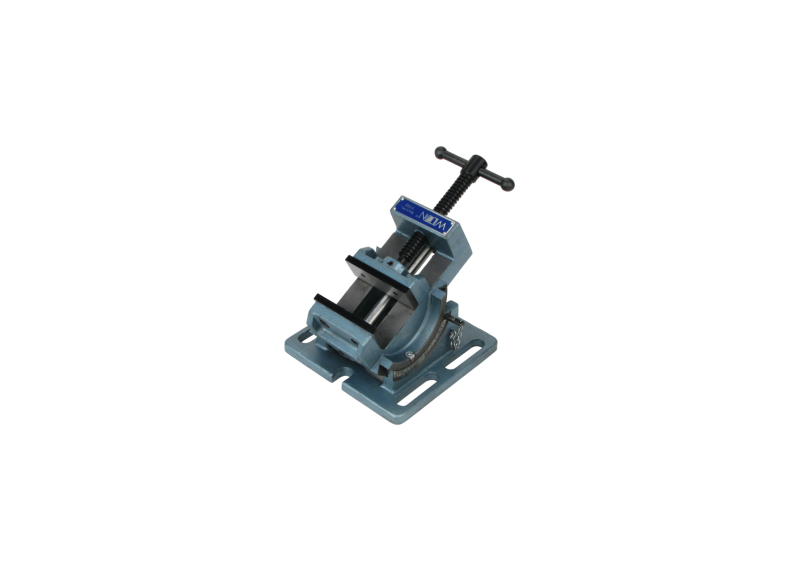

WILTON CR3, 3-INCH 75mm CRADLE-STYLE ANGLE DRILL PRESS VISE (11753) | | Eto Wilton | [Hàng Chính Hãng]

Liên hệ

Mã sản phẩm: wilton-11753
Thương hiệu: WILTON
Công nghệ:
Xuất xứ:
Bảo hành: Default Title
Trọng lượng:

The cradle style drill press vise is designed for angled drilling and tapping applications. All boast hardened v-grooved jaws for clamping round objects vertically and horizontally. Backed by Wilton's...

Base has four ½” shoulder slots for quick, easy positioning on the machine table
Cradle design with 90° vertical indexing, scaled in 1° increments
Designed for applications including drilling, tapping, and reaming
Designed for applications including drilling, tapping, and reaming requiring angle setup
Durable construction with fine grain cast iron castings
Durable construction with fine grain cast iron castings and hardened smooth vise jaws
Highly accurate with beds and bases parallel to ±.001”
Pin hard stops at 0°, 15°, 30°, 45°, 60°, 75° and 90° for common applications
Side tommy bar allows secure locking at any increment from 0° - 90°

Stock Number	11753
Jaw Depth (In.)	1-1/8
Jaw Width (In.)	3
Prop 65	Cancer and Reproductive Harm
Weight (Lbs.)	12

Mô tả

Base has four ½” shoulder slots for quick, easy positioning on the machine table
Cradle design with 90° vertical indexing, scaled in 1° increments
Designed for applications including drilling, tapping, and reaming
Designed for applications including drilling, tapping, and reaming requiring angle setup
Durable construction with fine grain cast iron castings
Durable construction with fine grain cast iron castings and hardened smooth vise jaws
Highly accurate with beds and bases parallel to ±.001”
Pin hard stops at 0°, 15°, 30°, 45°, 60°, 75° and 90° for common applications
Side tommy bar allows secure locking at any increment from 0° - 90°

Stock Number	11753
Jaw Depth (In.)	1-1/8
Jaw Width (In.)	3
Prop 65	Cancer and Reproductive Harm
Weight (Lbs.)	12
