CẦN SIẾT CÓ CHỈNH LỰC STAHLWILLE MANOSKOP® 730 QUICK 200 NM

Version:

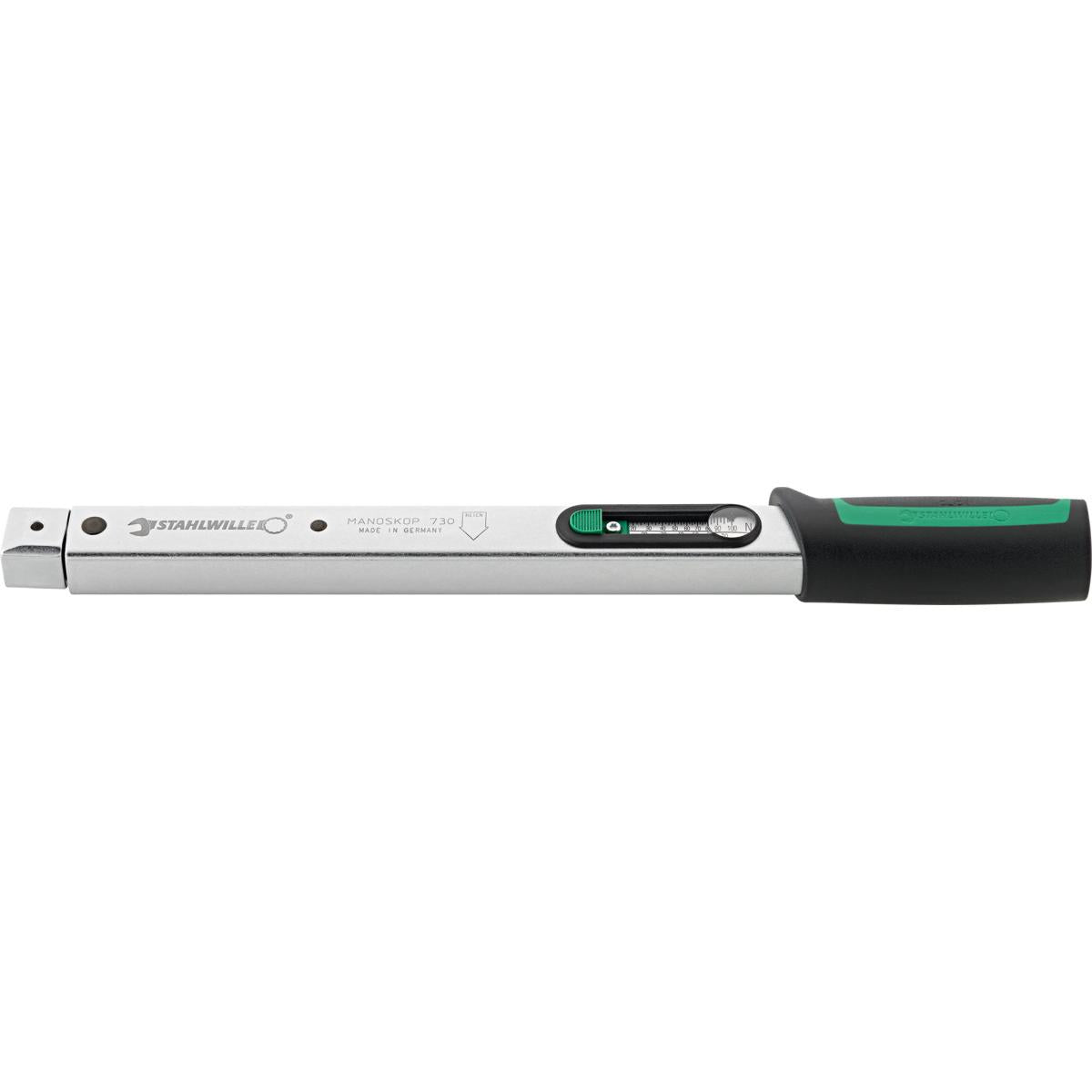

Sturdy compact one-armed torque wrench, adjustable to scale and self-triggering. The accuracy is sustained for many thousands of operations, because high quality material is used for all wearing parts with stressed parts loaded only briefly on each occasion. Body and handle are of sturdy square section. Scales adjustable. Anti-clockwise tightening by pushing through the drive shankWithout any plug-in head (basic model); see No. 657582 − 657950 for suitable plug-in heads.

Units of measure:

Nm, lbfft.

Function:

Adjustment:

Quick adjustment of the torque with the slide setting button. The value is fixed using the locking key in the handle. Quick adjustment of the torque with the slide setting button. The value is fixed using the locking key in the handle.

Application:

Since the set torque can be varied, it is ideal for repairs and short series production.

Standard:

Tested to DIN EN ISO 6789.

Note:

The guaranteed measuring accuracy of the torque is achieved only once the torque range has been calibrated to DIN EN ISO 6789.

Thông tin kỹ thuật
