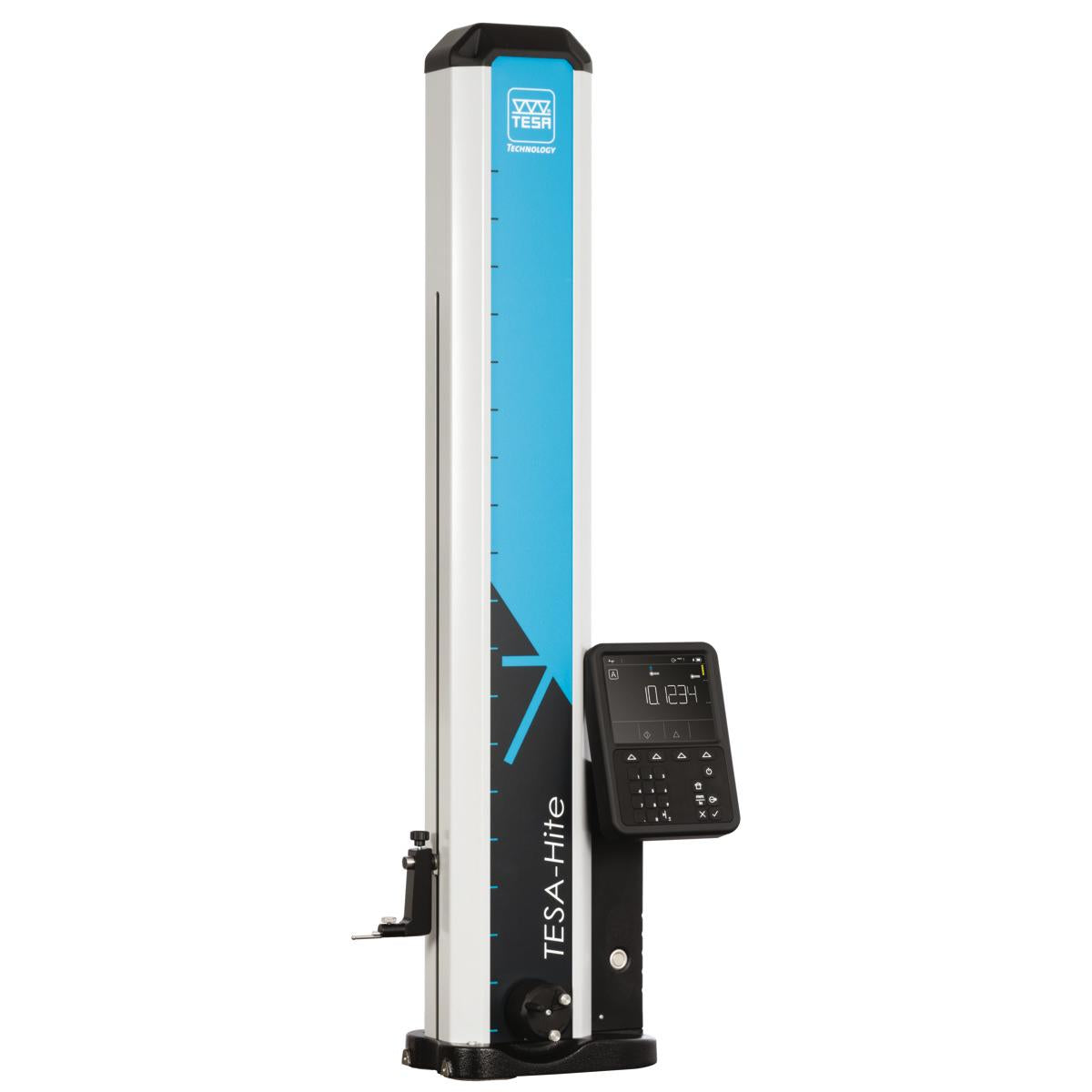

THƯỚC ĐO CAO ĐIỆN TỬ 700MM TESA HITE 00730085

Version:

High accuracy, very robust, manually adjustable height gauges. Dynamic component contact with consistent measuring force. Easy to use, due to large numeric display and symbols for measurement functions. TESA Opto-µ opto-electronic measuring system. Incrementally graduated glass scale with reference point for high accuracy. Large clear display screen with 21 mm character height and intuitive symbols. Colour display and backlighting for better legibility. Very long battery life for cordless measurements. User-friendly with multi-lingual context help in the active functions. Significantly faster measurement of the return points (min, max, ⌀) by use of patented Quickcenter Dynamic technology. Air pad for easy, jerk-free working.

Advantage:

Particularly suitable for use in production areas. Front face of the panel protected to IP65.

Function:

IP65:

Protected against jets of water from all directions and protected against penetration by dust (dust-tight), also completely protected against touching.

Application:

For measuring heights and steps, diameters, hole spacings, slot widths and deviations from parallelism etc.

Supplied with:

Base unit with control panel, standard contact point carrier, mains cable, standard contact point with carbide ball ⌀ 5 mm, 110 – 240 V power supply unit, rechargeable LI-ion battery. SCS calibration certificate.

Optional extras:

Various accessories available on request. Contact point set No. 445266 and No. 445267, TLC-BLE radio transmitter No. 498921, data cable No. 498918, spare battery No. 445443 size MH.

Thông tin kỹ thuật
