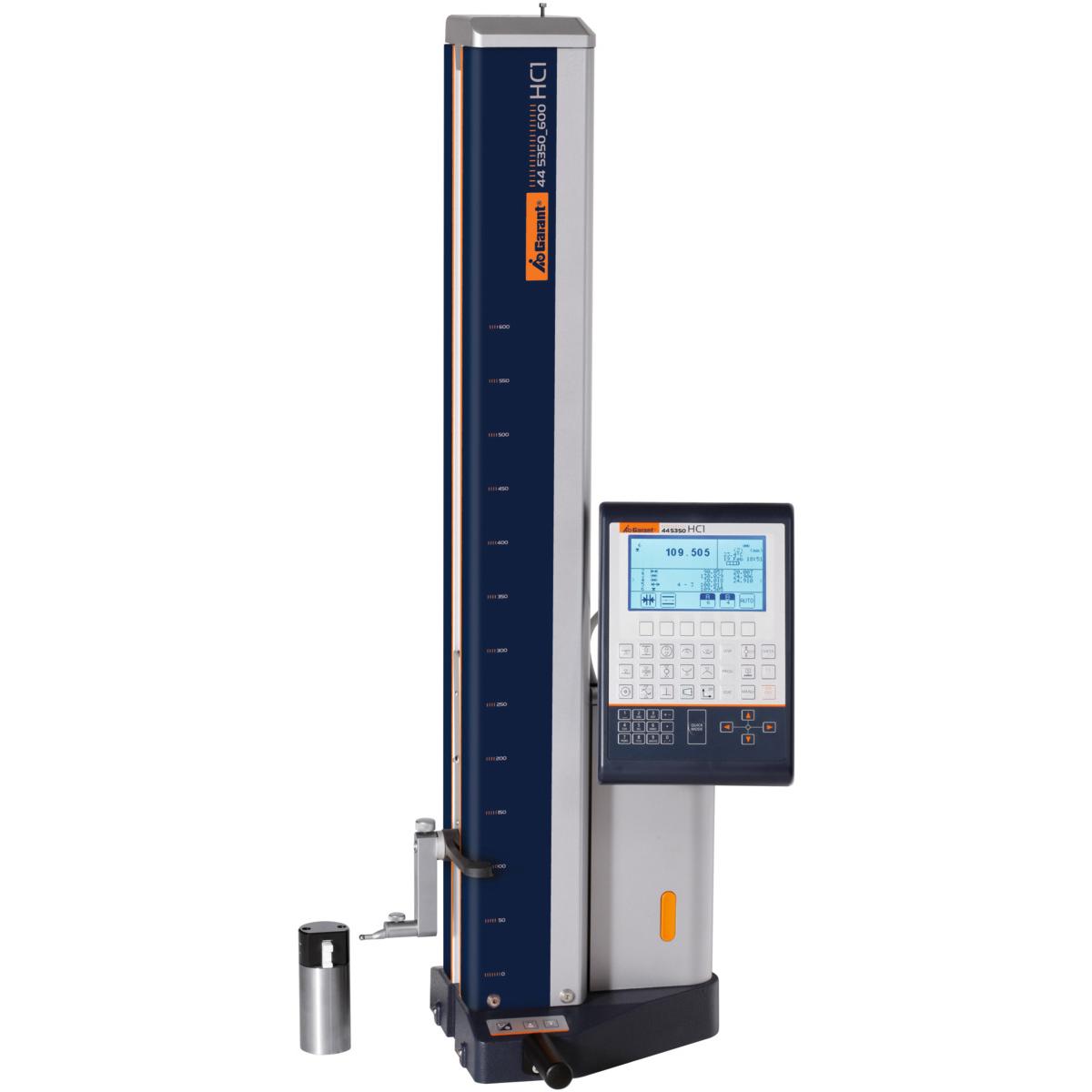

THƯỚC ĐO CAO 2D ĐIỆN TỬ GARANT HC1 445350 350MM

Version:

Measuring system:

Outstanding measuring accuracy and reliability due to optical incremental measuring system with double reading head. Dynamic probe system for high repeatability. Air bearings system for easy movement without jerking. Precise measuring head guidance on stainless steel slides. Easy measuring procedures due to motorised measurement slides. Button settings retained at power off. Integrated rechargeable battery for cordless measurements. Temperature compensation using internal temperature sensor.

Control and display unit:

Large and clear function buttons. Easily readable LCD graphics display with background illumination. User guidance via self-explanatory icons in several languages. Facility for setting additional zero points on the component. Saving of measured data on integrated USB memory. Additional measuring device can be connected to the Opto RS232C interface. Future-proof as it can be updated. Automatic stand-by circuit (no loss of measured values).

Additional 2D measurement functions:

Compensation circle. Distance and angle of 2 elements. Angle between 3 elements. Angle within a cone. Coordinate transformations.

Statistical evaluation:

Statistical analysis of individual features. Histograms. Process control cards. Pareto charts. Creation of production and inspection plans. Direct print-out on a USB printer.

Supplied with:

Control and display unit. Carrier No. 445410 size T6, contact point No. 445420 size K6/51, setting block, power supply unit No. 445432, NiMH battery No. 445430 and instruction manual.

Attention:

German version. Order free UK adapter plug No. 08 1174_GB.
