Version:

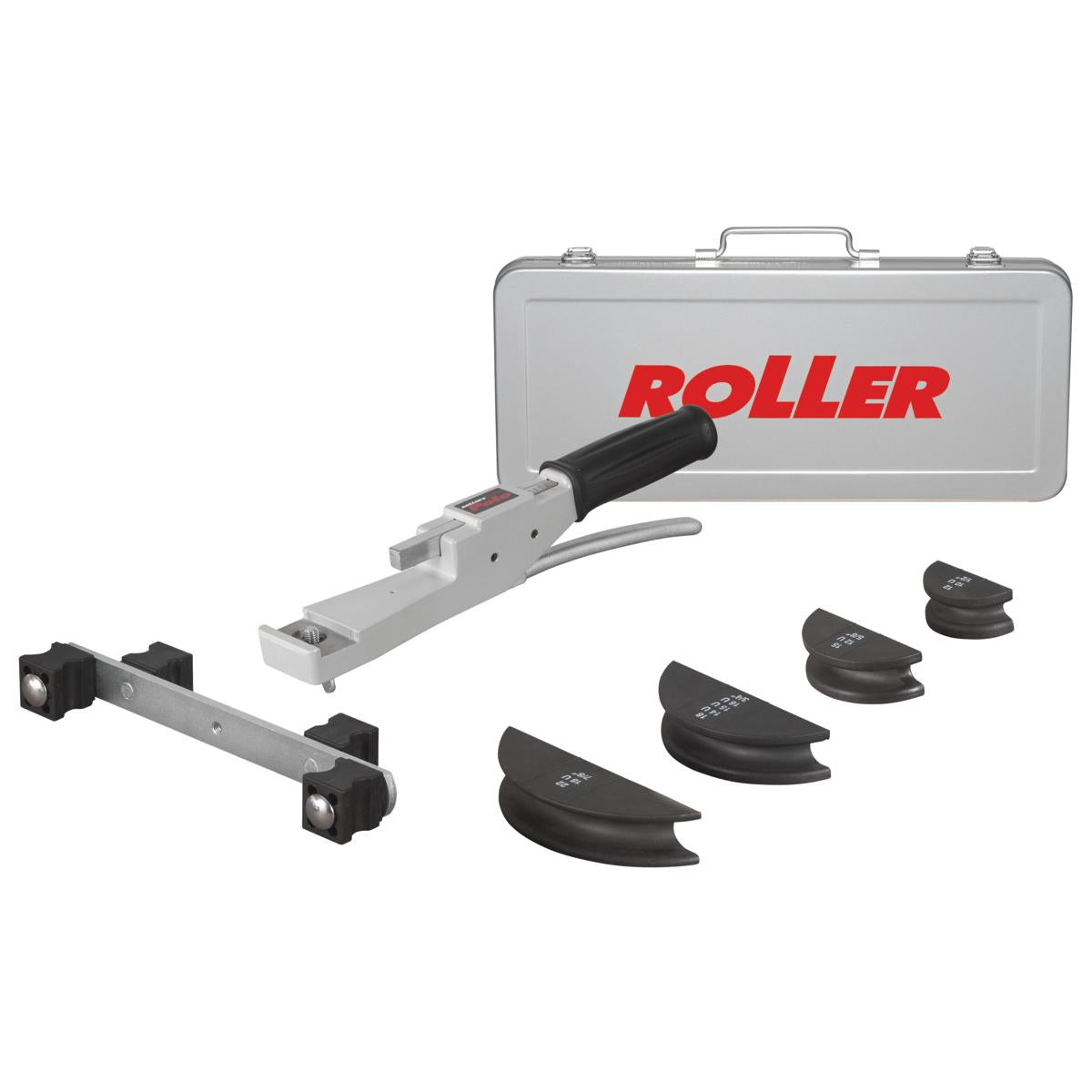

Robust bending drive of cast aluminium with mechanical rack advance (quick advance and quick withdraw), a universal slide carrier, and bending formers of glass fibre-reinforced polyamide.
Bending angles of up to 180° achievable.
Application:
For bending soft uncased copper pipes, sheathed steel pipes for the Mapress Carbon Steel push-fitting system, precision mild steel pipes to DIN2391 - 2394, plain or sheathed and connecting pipes for the push-fitting system.
Content:
Bending drive:
1 pc.
Universal slide:
1 pc.
1 each bending segment for pipe external ⌀:
Size 12; 15; 18; 22 mmBending radius (centre of pipe):
Size 36; 55; 72; 86 mmThông tin kỹ thuật
