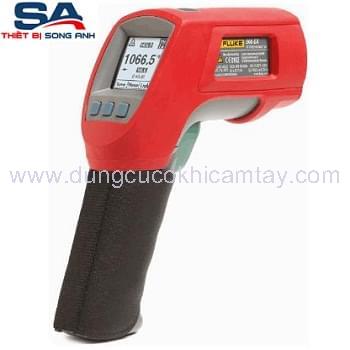

Máy đo nhiệt độ bằng tia hồng ngoại Fluke 568 Ex

Liên hệ

Mã sản phẩm: 568 Ex
Thương hiệu: Fluke
Công nghệ: Mỹ
Xuất xứ: Trung Quốc
Bảo hành: 12 Tháng
Trọng lượng: 0 Kg

Title:

Kích thước:

Màu sắc:

Súng đo nhiệt độ bằng tia hồng ngoại Fluke 568 Ex

Thông số kỹ thuật:

Súng đo nhiệt độ bằng tia hồng ngoại Fluke 568 Ex

Infrared temperature range	-40 °C to 800 °C (-40 °F to 1472 °F)
Infrared accuracy	< 0 °C (32 °F): ± (1.0 °C (± 2.0 °F) + 0.1°/1 °C or °F); > 0 °C (32 °F): ± 1 % or ± 1.0 °C (± 2.0 °F), whichever is greater
Display resolution	0.1 °C / 0.1 °F
Infrared spectral response	8 µm to 14 µm
Infrared response time	< 500 ms
Thermocouple type-k input temperature range	-270 °C to 1372 °C (-454 °F to 2501 °F)
Thermocouple type-k input accuracy	<-40 °C: ±(1 °C + 0.2 °/1 °C) ≥-40 °C: ±1 % or 1 °C, whichever is greater <-40 °F: ±(2 °F + 0.2 °/1 °F) ≥-40 °F: ±1 % or 2 °F, whichever is greater
D:S (distance to measurement spot size)	50:1
Laser sighting	Single-point laser
Minimum spot size	19 mm (0.75 in)
Emissivity adjustment	By built-in table of common materials or digitally adjustable from 0.10 to 1.00 by 0.01
Data storage	99 points
Hi/Low alarms	Audible and two-color visual
Min/Max/Avg/Dif	Yes
Display	Dot matrix with function menus
Backlight	Two levels, normal and extra bright for darker environments
Trigger lock	Yes
Switchable celsius and fahrenheit	Yes
Power	2 AAA/LR03 type-approved batteries (For a list of type-approved batteries, refer to Product Safety Instructions.)
Battery life	4 hours with laser and backlight on; 100 hours with laser and backlight off, at 100 % duty cycle
Operating temperature	0 °C to 50 °C (32 °F to 122 °F)
Storage temperature	-20 °C to 60 °C (-40 °F to 140 °F)
Bead thermocouple type-k range	-40 °C to 260 °C (-40 °F to 500 °F)
Bead thermocouple type-k accuracy	± 1.1 °C (2.0 °F) from 0 °C to 260 °C (32 °F to 500 °F), typically within 1.1 °C (2.0 °F) from -40 °C to 0 °C (-40 °F to 32 °F)
