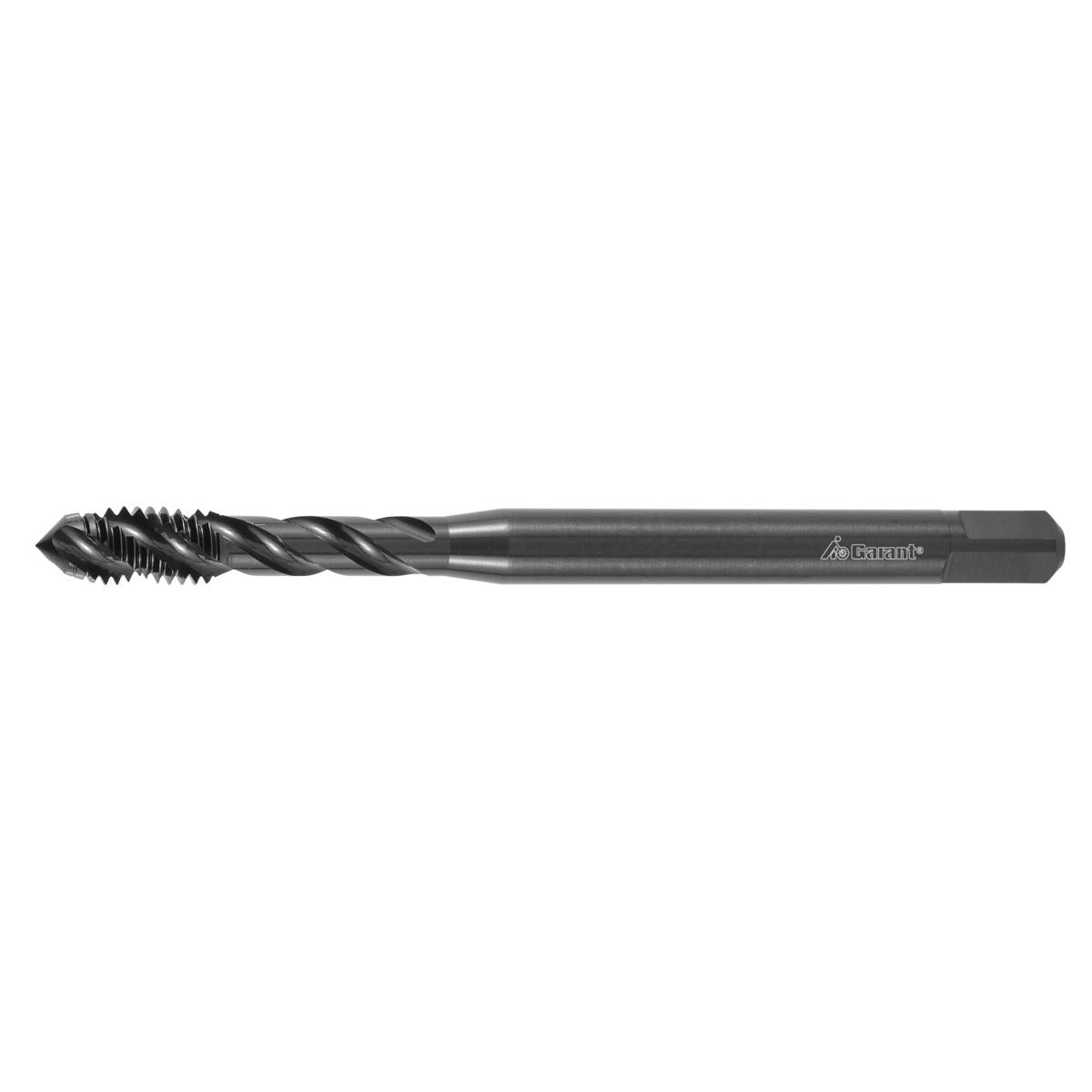

TARO MÁY M5 GARANT

Liên hệ

Mã sản phẩm: 134851 M5-PT
Thương hiệu: GARANT
Công nghệ:
Xuất xứ:
Bảo hành: Default Title
Trọng lượng:

Thread size M5 Coating vaporised Thread type M Flank angle 60 degrees Tool material HSS E Standard DIN 371 Thread standard DIN 13 Tolerance class ISO 2 6H Taper lead form C Helix angle 40 degrees Shan...

Thread size M5 Coating vaporised Thread type M Flank angle 60 degrees Tool material HSS E Standard DIN 371 Thread standard DIN 13 Tolerance class ISO 2 6H Taper lead form C Helix angle 40 degrees Shank Plain shank with h9 Through-coolant no Application for type of drilling up to 3×D for blind holes Cutting direction right-hand Thread pitch 0. 8 mm Overall length L 70 mm Shank ⌀ Ds 6 mm Shank square □ 4. 9 mm Tapping hole ⌀ 4. 2 mm Thread ⌀ 5 mm Type of threading tool Machine tap for conventional machining Number of clamping slots 3 Colour ring without Number of cutting edges Z 3 Thread depth 15 mm Type of product Tap

Thông tin kỹ thuật

Mô tả

Thread size M5 Coating vaporised Thread type M Flank angle 60 degrees Tool material HSS E Standard DIN 371 Thread standard DIN 13 Tolerance class ISO 2 6H Taper lead form C Helix angle 40 degrees Shank Plain shank with h9 Through-coolant no Application for type of drilling up to 3×D for blind holes Cutting direction right-hand Thread pitch 0. 8 mm Overall length L 70 mm Shank ⌀ Ds 6 mm Shank square □ 4. 9 mm Tapping hole ⌀ 4. 2 mm Thread ⌀ 5 mm Type of threading tool Machine tap for conventional machining Number of clamping slots 3 Colour ring without Number of cutting edges Z 3 Thread depth 15 mm Type of product Tap

Thông tin kỹ thuật
