Version:

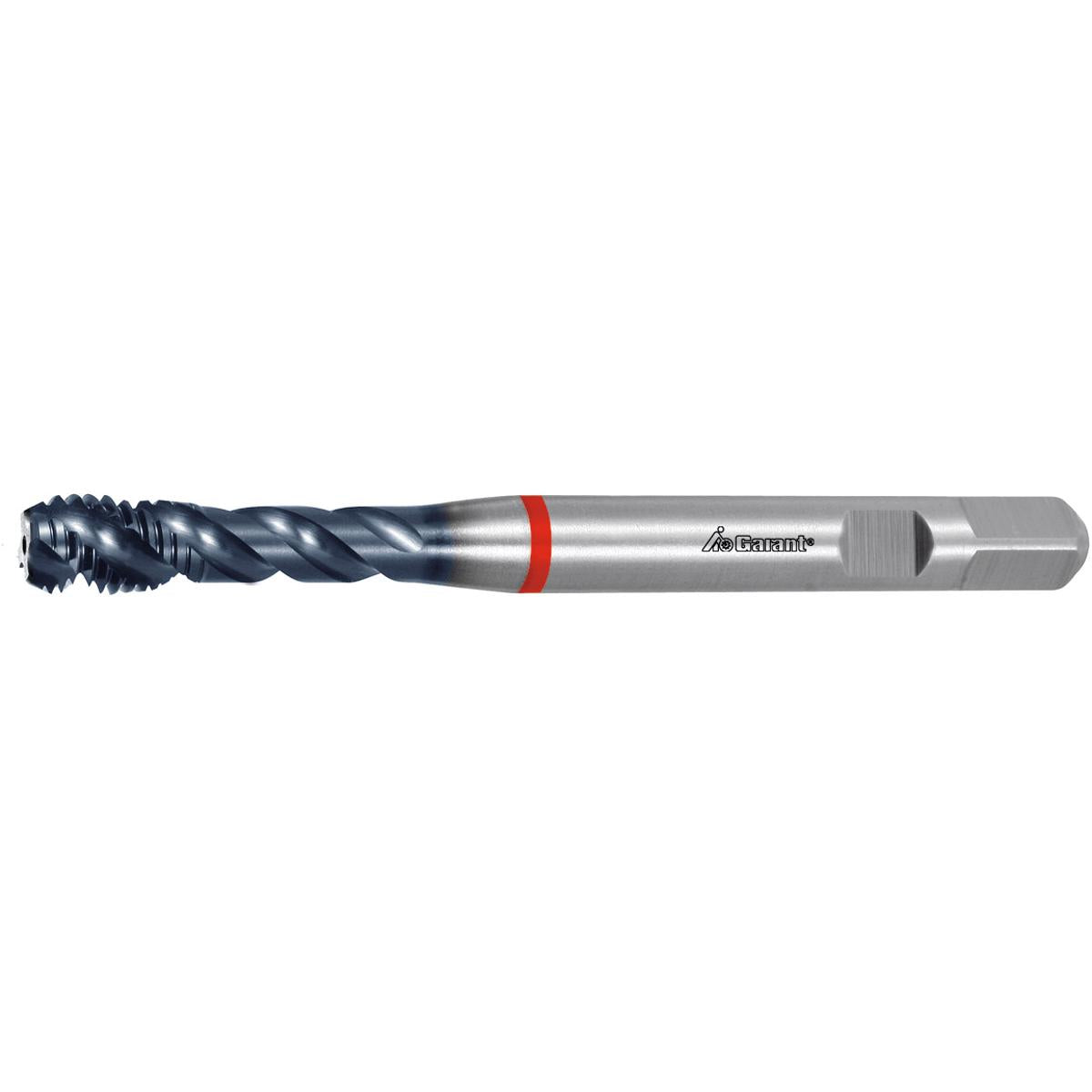

Sturdy version with right-hand helix and shank to DIN 1835-B.
Special geometry for use on machines with synchronised spindle drives.
The tap is guided by the synchronised spindle on the machine.
Special TiAlN-S coating for optimum tool life.
For use with emulsion (fat content minimum 8%).
Form E (lead chamfer:
1.
5 - 2 turns) for the deepest possible thread depths.
Recommendation:
For TOOLOX materials we recommend deviating from the DIN data (see table) by drilling the tapping hole ⌀ 0.
05 to 0.
3mm larger.
Note:
For use on synchronised spindles, the GARANT quick-change tapping chuck No.
338100 − 338121 with minimum length adjustment (MLA) ensures very high process reliability.
