Version:

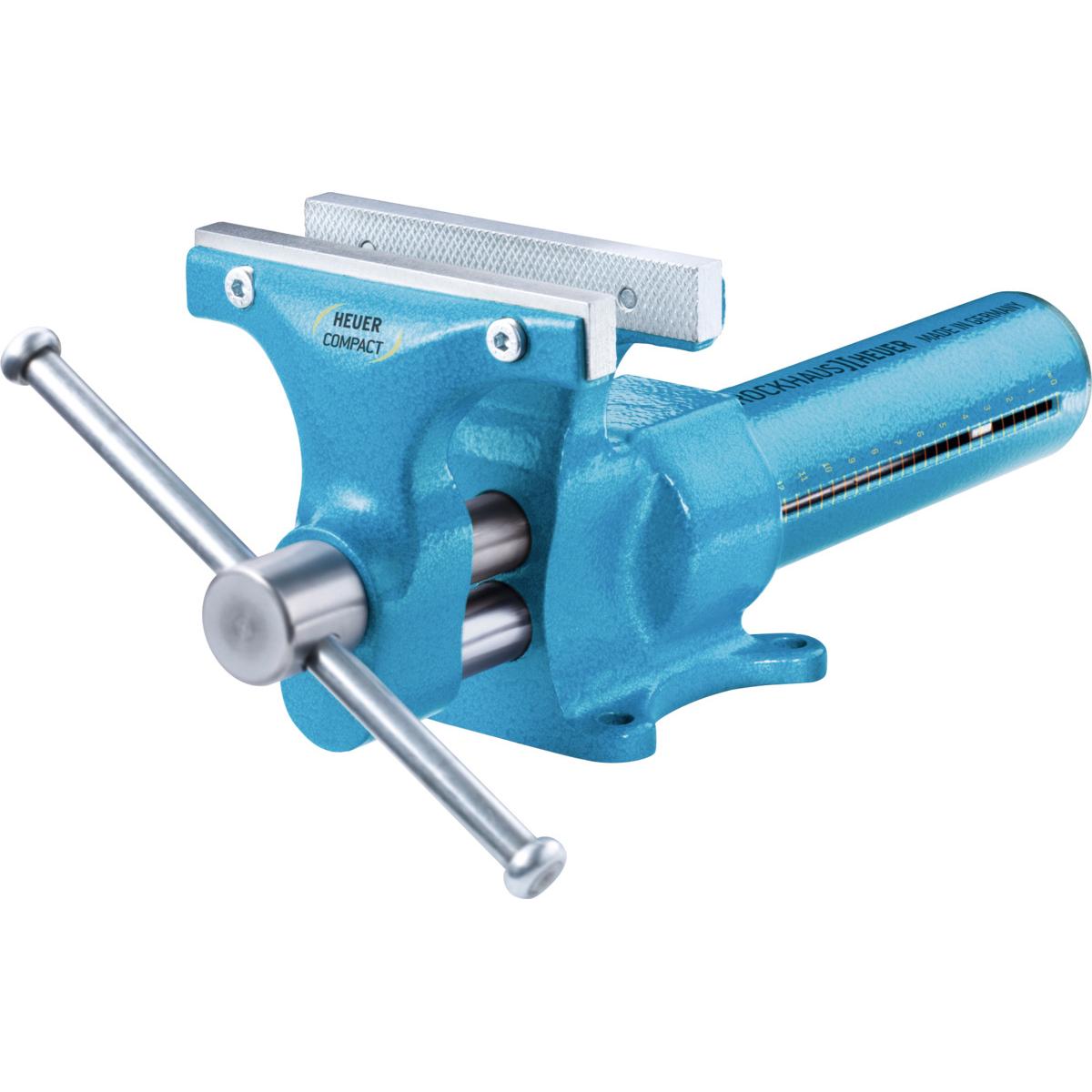

Lightweight, steel with compact dimensions, entirely forged of steel.
Opens forwards.
With integral pipe jaws underneath the normal jaws.
New type of quick adjustment of the jaw opening from 0 to 130 mm simply by twisting the pipe body and pulling out the front jaw directly.
Additional jaw opening indications on the tubular body with centimetre graduations to simplify pre-setting.
Jaws used surface-hardened and galvanised.
Clamping force 10 kN.
One side serrated, one side smooth.
Reversible and interchangeable.
Version - image:
Twist release.
Quick adjustment of jaw opening.
Supplied with:
Fasteners for attachment to the workbench.
Optional extras:
Swivel base No.
967390 size 100.
Spare jaws No.
967405 size 120.
Bench clamp No.
967400 size 100.
