DỤNG CỤ TARO ỐNG "TRUNG TÂM" HOÀN CHỈNH 1/2; 3/4; 1; 1.1/4; 1.1/2; 2 INCH

Version:

Quick cutting head change due to easy insertion into the ratchet head with quick-release lock. Cutting heads with long pipe guide and exactly set threading dies. The dies are particularly wear-resistant and easy to exchange. Ratchet reversible for right- and left-hand threads. The threading dies can be reversed for thread cutting right up to a wall (for short pipe ends that are already in place). Not suitable for stainless steel pipes.

Application:

A handy and light die stock for use on building sites. The small head ⌀ permits working in confined places.

Suitable for:

BSPT pipe thread to DIN 2999 taper 1:

16.

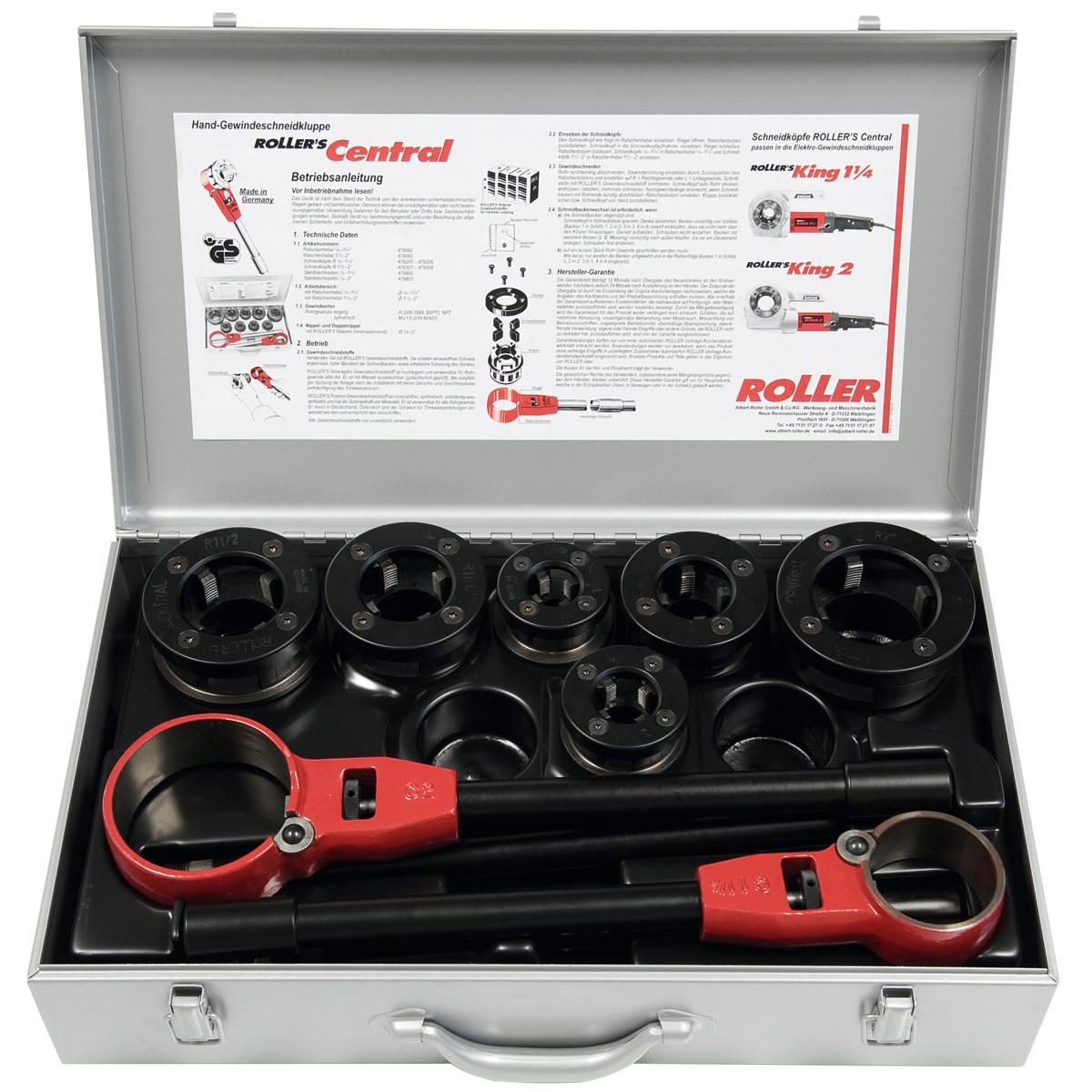

Content:

Associated cutting heads, 1 pc.

each (for Whitworth pipe threads):

1/2; 3/4; 1; 1. 1/4; 1.

1/2; 2 inchRatchet arm:

2 pcs.

Note:

The following items are also available as individual parts on request:

Ratchet arm No. 820600Sheet metal case No. 820620Complete cutting heads with jaws No. 820650 and spare jaws No. 820670. When ordering please state the desired size.
