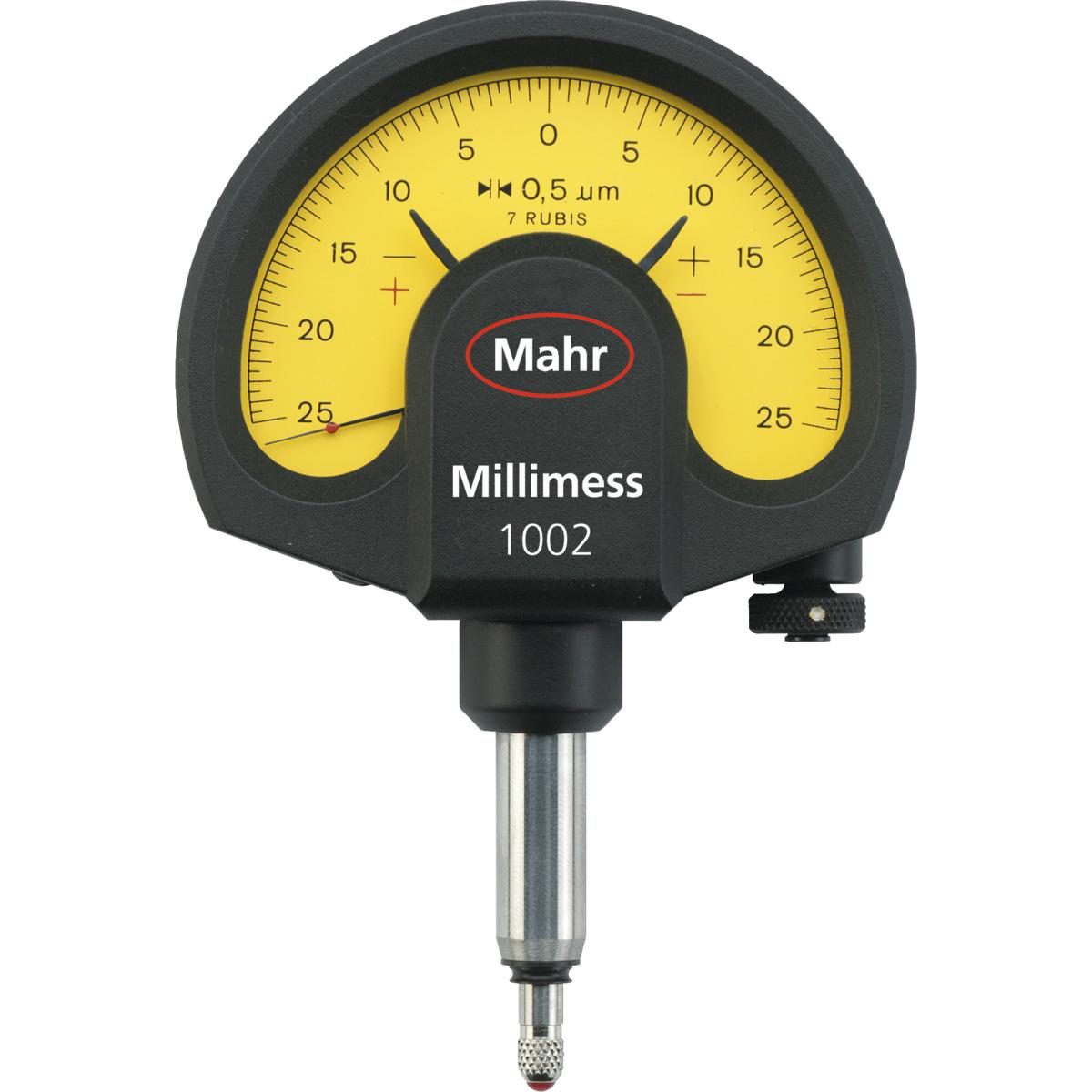

ĐỒNG HỒ SO CHÍNH XÁC CAO MAHR 434674 25/0,5ΜM

Version:

Sapphire mounted, all-in-one mechanism, particularly robust for use in the manufacturing area. Low hysteresis due to virtually play-free gauging pins on ball guides. Resistant to lateral forces. One-piece housing for maximum stability and accuracy. Shock resistance due to transmission lever which lifts up in the event of overloadConstant measuring force by straight spring. Large overrun for convenient insertion of the component. Lifting key or lifting cable (special accessories) can be connected. Clearly legible scale. 2 Tolerance pointers for presetting the permitted tolerance range.

Version - image:

Tolerance pointersConnectionfor foot switch No. 434930Fine adjustmentlockable (zero setting).

Application:

As a dial bore gauge for series and individual inspections.

Optional extras:

Lifting cable No. 434930.

Thông tin kỹ thuật
