Version:

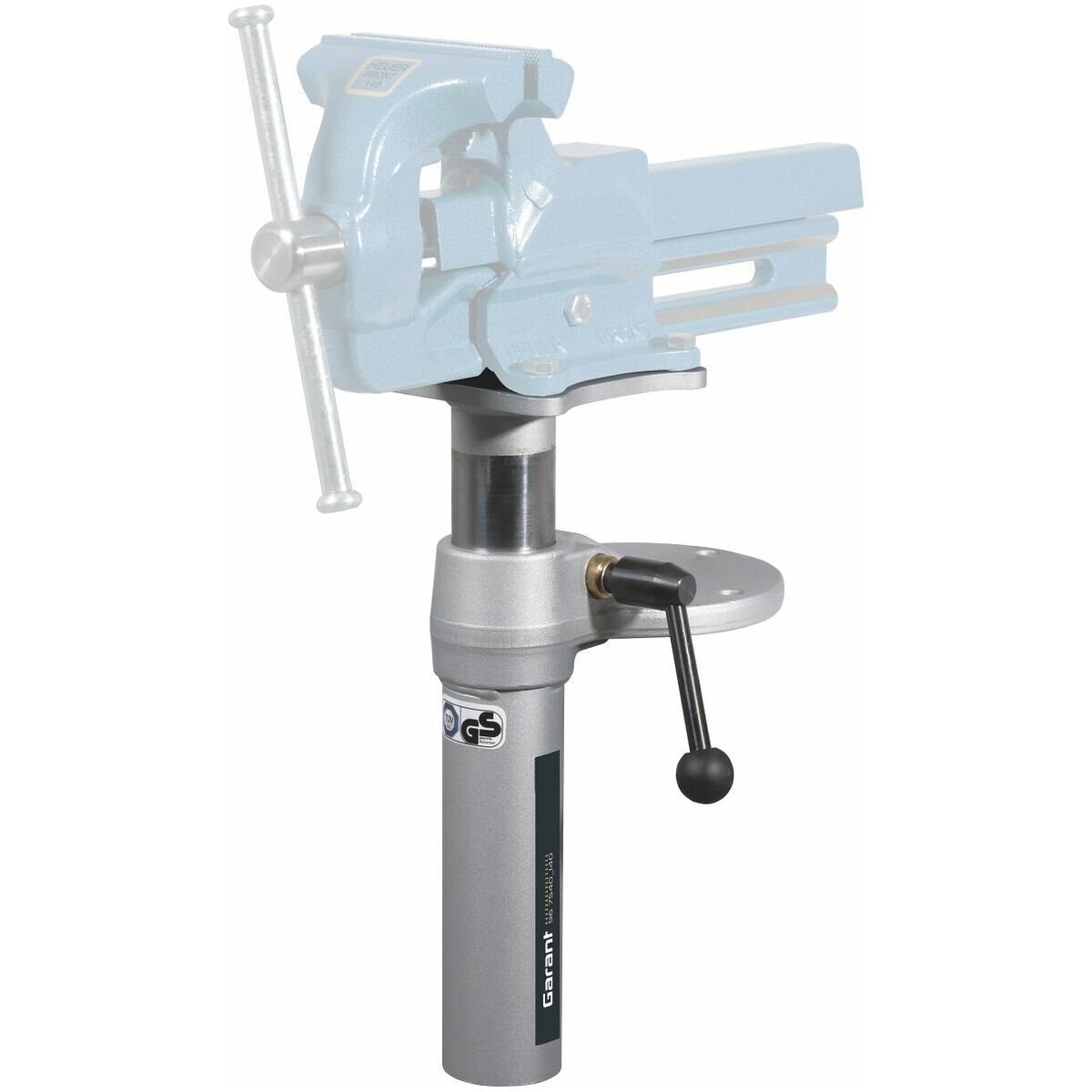

Sturdy and very strong forged parts / steel design.
Very smooth-running and precise guidance due to CNC-machined components.
Extremely strong clamping by the special locking device.
A built-in gas pressure spring ensures weight compensation during height adjustment of the vice.
Quick clamping in any desired position by means of the safety clamping lever.
Advantage:
In conjunction with the height adjuster the vice can be rotated by 360° without an additional swivel base in order to bring the component into the best working position.
The safety margin of 25 mm specified in DIN 31001 part 1 is kept during all height and angle adjustments.
Application:
For centimetre-accurate adjustment of the vice to the ideal working height (particularly important in training workshops and school workshops).
Suitable for:
Bench vices “Heuer-Front” No.
967350; 967360 and HOLEX No.
967420; 967430.
Supplied with:
All fastening screws for attachment to the workbench.
Colour:
Silver-grey.
