Dây đồng cho máy cắt dây EDM

Liên hệ

Mã sản phẩm: UNI-020
Thương hiệu: UNION
Công nghệ: Châu Âu
Xuất xứ: Hàn Quốc
Bảo hành: -
Trọng lượng: 5.0 kg

Title:

Kích thước:

Màu sắc:

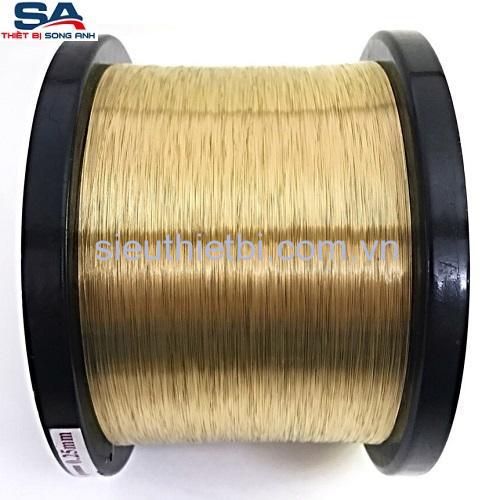

Dây đồng dùng cho máy cắt dây EDM UNION KOREA nhập khẩu chính hãng
xuất xứ: UNION Hàn Quốc
Công dụng: dùng trong máy cắt dây - Wire Cut EDM
Thông Số Kỹ Thuật: Ø 0.1 mm, Ø 0.15 mm, Ø 0.2 mm, Ø 0.25 mm, Ø 0.3 mm
Dây đồng dùng cho máy cắt dây EDM, CNC, Dây đồng dùng cho máy cắt dây, Dây cắt dùng cho máy cắt, dây đồng cứng, dây đồng mềm, Brass EDM wire cut..

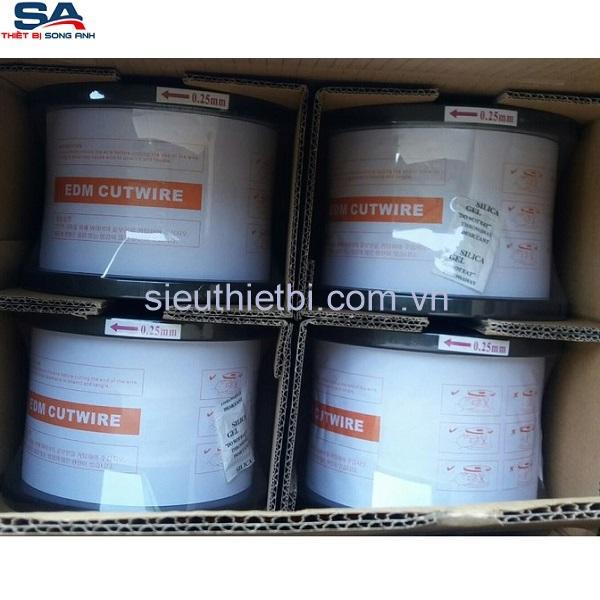

UNION EDM-TOOLS BRASS WIRE

PRODUCT RANGE AND SPECIFICATIONS

Diameter	Product Code	Tensile St. (N/mm2)	Grade	Spool (JIS/DIN)	Net WT	Length	Ctn Pack	WT/Ctn
0.100mm 0.150mm	EDM10HP3R EDM15HP3R	950 - 1000 950 - 1000	Hard Hard	P3R P3R	3.0 kg 3.0 kg	46.0 km 20.4 km	6spls/ctn 6spls/ctn	18.0 kg 18.0 kg
0.200mm	EDM20HP3R EDM20HP5R EDM20HP10 EDM20HP15 EDM20MK125 EDM20MK160 EDM20MK200 EDM20HK125 EDM20HK160	950 - 1000 950 - 1000 950 - 1000 950 - 1000 480 - 520 480 - 520 480 - 520 950 - 1000 950 - 1000	Hard Hard Hard Hard Semi Hard Semi Hard Semi Hard Hard Hard	P3R P5R P10 P15 K125 K160 K200 K125 K160	3.0 kg 5.0 kg 10.0 kg 20.0 kg 3.5 kg 8.0 kg 16.0 kg 3.5 kg 8.0 kg	11.5 km 19.1 km 38.2 km 76.4 km 13.4 km 30.6 km 61.2 km 13.4 km 30.6 km	6spls/ctn 4spls/ctn 2spls/ctn 1spl/ctn 4spls/ctn 2spls/ctn 1spl/ctn 4spls/ctn 2spls/ctn	18.0 kg 20.0 kg 20.0 kg 20.0 kg 14.0 kg 16.0 kg 16.0 kg 14.0 kg 16.0 kg
0.250mm	EDM25HP3R EDM25HP5R EDM25HP10 EDM25HP15 EDM25MK125 EDM25MK160 EDM25MK200 EDM25HK125 EDM25HK160 EDM25HK200	950 - 1000 950 - 1000 950 - 1000 950 - 1000 480 - 520 480 - 520 480 - 520 950 - 1000 950 - 1000 950 - 1000	Hard Hard Hard Hard Semi Hard Semi Hard Semi Hard Hard Hard Hard	P3R P5R P10 P15 K125 K160 K200 K125 K160 K200	3.0 kg 5.0 kg 10.0 kg 20.0 kg 3.5 kg 8.0 kg 16.0 kg 3.5 kg 8.0 kg 16.0 kg	7.3 km 12.2 km 24.4 km 48.8 km 8.5 km 19.6 km 39.2 km 8.5 km 19.6 km 39.2 km	6spls/ctn 4spls/ctn 2spls/ctn 1spl/ctn 4spls/ctn 2spls/ctn 1spl/ctn 4spls/ctn 2spls/ctn 1spl/ctn	18.0 kg 20.0 kg 20.0 kg 20.0 kg 14.0 kg 16.0 kg 16.0 kg 14.0 kg 16.0 kg 16.0 kg
0.300mm	EDM30HK5R EDM30HK10	950 - 1000 950 - 1000	Hard Hard	P5R P10	5.0 kg 10.0 kg	8.5 km 17.0 km	4spls/ctn 2spls/ctn	20.0 kg 20.0 kg

TECHNICAL SPECIFICATIONS

Wire Diameter Sizes
Diameter Tolerance
Tensile Strength

Brass Material Specs
Material Composition

0.100mm, 0.150mm, 0.200mm, 0.250mm, 0.300mm
-0.000/ -0.002mm
Hard Wire : 950-1000 N/mm2 (96-102 kgf/mm2)
SemiHard Wire : 480-520 N/mm2 (49-63 kgf/mm2)
Soft Wire : 300-380 N/mm2 (31-39 kgf/mm2)
EQUIVALENT TO JIS H3260 C2800W STANDARDS
60%Cu/40%Zn

PLASTIC REEL DIMENSIONS

Spool Type	D1	D2	W1	W2	W3
SPOOL SIZE (mm)
P-3R P-5R P-10 P-15 K125 K160 K200	130 mm 160 mm 200 mm 250 mm 125 mm 160 mm 200 mm	80 mm 90 mm 90 mm 110 mm 80 mm 100 mm 125 mm	110 mm 114 mm 134 mm 140 mm 125 mm 160 mm 200 mm	20 mm 90 mm 110 mm 110 mm 100 mm 128 mm 160 mm	20 mm 20 mm 25 mm 32 mm 16 mm 22 mm 22 mm

MSDS

EDM-TOOLS EDM BRASS CUT-WIRE

Product Information
Description	: EDM-Tools Brass Cut-Wire
HS Code	:
Hazardous Ingredients	: Nil
Usage	: EDM Wire Cutting for wire cut machine

Physical Data
Material Specification	: Brass - Equivalent to JIS H3260 C2700W / C2800
Material Composition	: 65% Cu, 35% Zn or 60% Cu, 40% Zn
Wire Diameter	: 0.15mm, 0.20mm, 0.25mm & 0.30mm
Diameter Tolerance	: -0.001mm, -0.002mm

Diameter (mm)	Grade	Tensile St. (N/mm2)	Breaking Load (N)	Elongation (%)	Conductivity (IACS)
0.15	Hard	980	17.2	2.3	21%
0.2	Hard	980	29.2	2.5
0.25	Hard	980	46.5	2.5
0.3	Hard	980	67.2	2.7
0.15	Medium	480 - 520	N/A	N/A	24%
0.2	Medium	480 - 520	12.2	> 12
0.25	Medium	480 - 520	21	> 12
0.3	Medium	480 - 520	31.6	> 12
