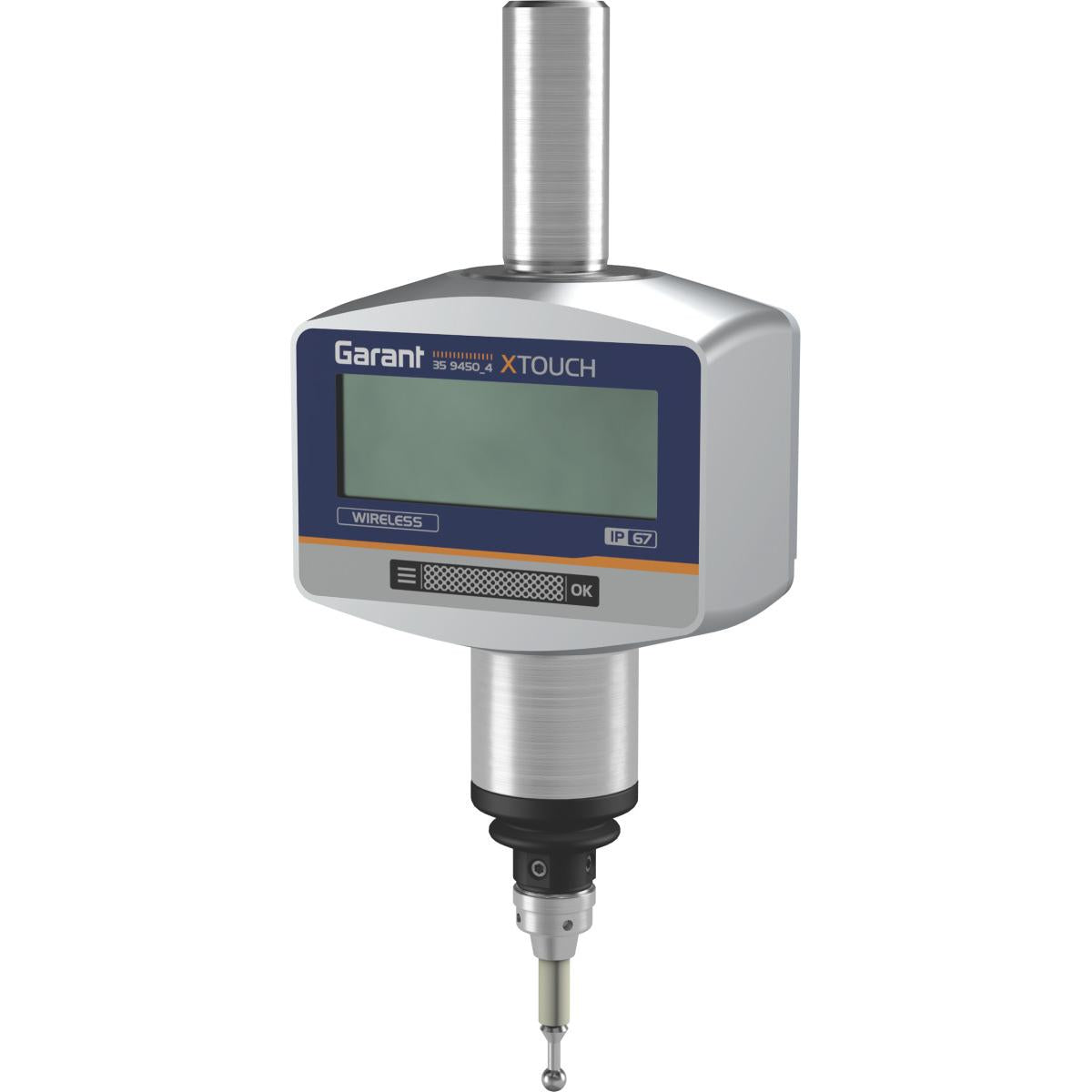

ĐẦU DÒ 3D SÓNG VÔ TUYẾN TRUYỀN DỮ LIỆU BẰNG USB GARANT 359450 4

Version:

Possibility to transfer the measured values in combination with GARANT XCONNECT No. 359455 1. Suitable only for Siemens and Heidenhain controllers. The machine requires a functioning USB port on the control panel. High accuracy and linearity. For fully automatic determination of component zero-points, measurement of lengths, bore centres, reference edges and axial alignment. Convenient and simple concentricity adjustment. Large working range in all directions (x, y, z = 7 mm). Compact metal body. Dust-tight and watertight = IP67. Predetermined breaking point. Simple menu navigation. Quick commissioning without hardware changeover and service engineer use. No need to interfere with the machine tool operating system!Minimisation of rejects.

Function:

IP67:

Protected against intermittent immersion in water and protected against penetration by dust (dust-tight), also completely protected against touching.

IP67:

Protected against intermittent immersion in water and protected against penetration by dust (dust-tight), also completely protected against touching.

Application:

Automatic transmission of the measured values into the machine control by GARANT XCONNECT No. 359455 1. For fully automatic determination of component zero-points, measurement of lengths, bore centres, reference edges and axial alignment. Manual operation without wireless transmission (without XCONNECT) is also possible.

Supplied with:

Supplied with battery CR2 and contact point No. 359505 size 4.

Optional extras:

XCONNECT data memory stick 359455 1.

Note:

Suitable contact point No. 359505 4. The item is permanently installed on a machine and can only be used on another machine through another cycle request.
