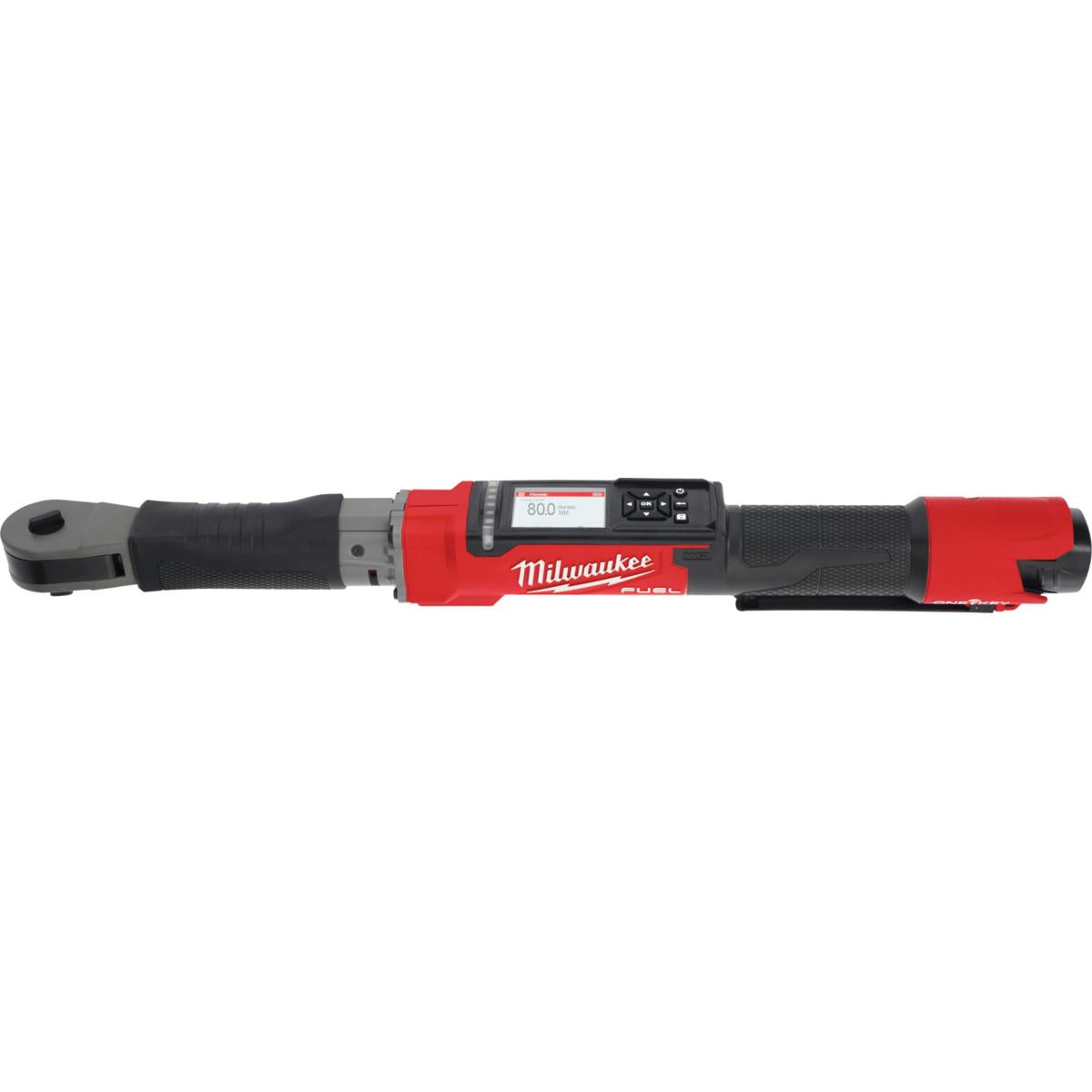

Cần lực điện tử tự động dùng pin Milwaukee - Electronic torque wrench with electric drive 203 Nm

Liên hệ

Mã sản phẩm: 655305 203-PT
Thương hiệu: Milwaukee
Công nghệ:
Xuất xứ:
Bảo hành: Default Title
Trọng lượng:

DescriptionVersion:The electric drive can be used to run the screw forward to the point where torque is applied. The screw is then tightened manually to the set torque. Setting and operation directly ...

Description

Version:

The electric drive can be used to run the screw forward to the point where torque is applied. The screw is then tightened manually to the set torque. Setting and operation directly at the torque wrench.
Quick reporting of the torque via ONE-KEY™ for generation of reports.
LCD display with strong colours and quick response times. Feedback on status and display of relevant information.
Warning signals can be optionally set as tactile (vibration), visual (LEDs and display) and acoustic or combinations of these. The early warning point can be entered individually.
Up to 28,000 measured values can be saved on the torque wrench.
With calibration reminders. After a certain number of duty cycles and elapsed time.

Units of measure: Nm, ft·lbs, in·lbs, kg·cm.

Standard:

Tested to DIN EN ISO 6789.

Accuracy:

Clockwise +/- 2%, anticlockwise +/- 3%.

Supplied with:

Supplied with 12 V / 2.0 Ah Red Li-ion battery, C12C charger and sturdy plastic case.

Note:

See No. 073814ff and No. 073840 for suitable batteries and chargers. Recalibration is performed by the manufacturer.

Technical Data

suitable battery - supplier / battery type / voltage	Milwaukee type B 12 V
Direction of tightening	For right and left-hand tightening
Torque measuring accuracy	±2 %; ±3 %
App link	OneKey
Test certificate	Manufacturer’s test certificate
Calibration	Price on request
Overall length L	597 mm
Torque range	16.9 Nm - 203.4 Nm
Torque range	12.5 lbfft - 150 lbfft
Torque range	150 lbfin - 1,800 lbfin
Resolution	0.1 Nm
Weight	2,600 g
Square drive	1/2 inch
Display	digital
Release signalling	acoustic; haptisk; haptisk
Trigger principle	Vibration motor
Power supply	Rechargeable battery-powered
Number of rechargeable batteries contained	1
Type of rechargeable battery	Lithium-ion
Battery capacity	2 Ah
Nominal voltage	12 V
Motor design	Fuel™
No load speed	0 rpm - 100 rpm
Measurement technology	electronic
Data can be recorded	no
Setting the trigger value	digital, adjustable
Feedback	acoustic signal; udløsning; visning
Reversible reading	Nm; lbfin; lbfft; kgf-cm
Measurement process	Torque
Adjustable trigger value	adjustable
Standard	DIN EN ISO 6789
Type of product	Torque Wrench
