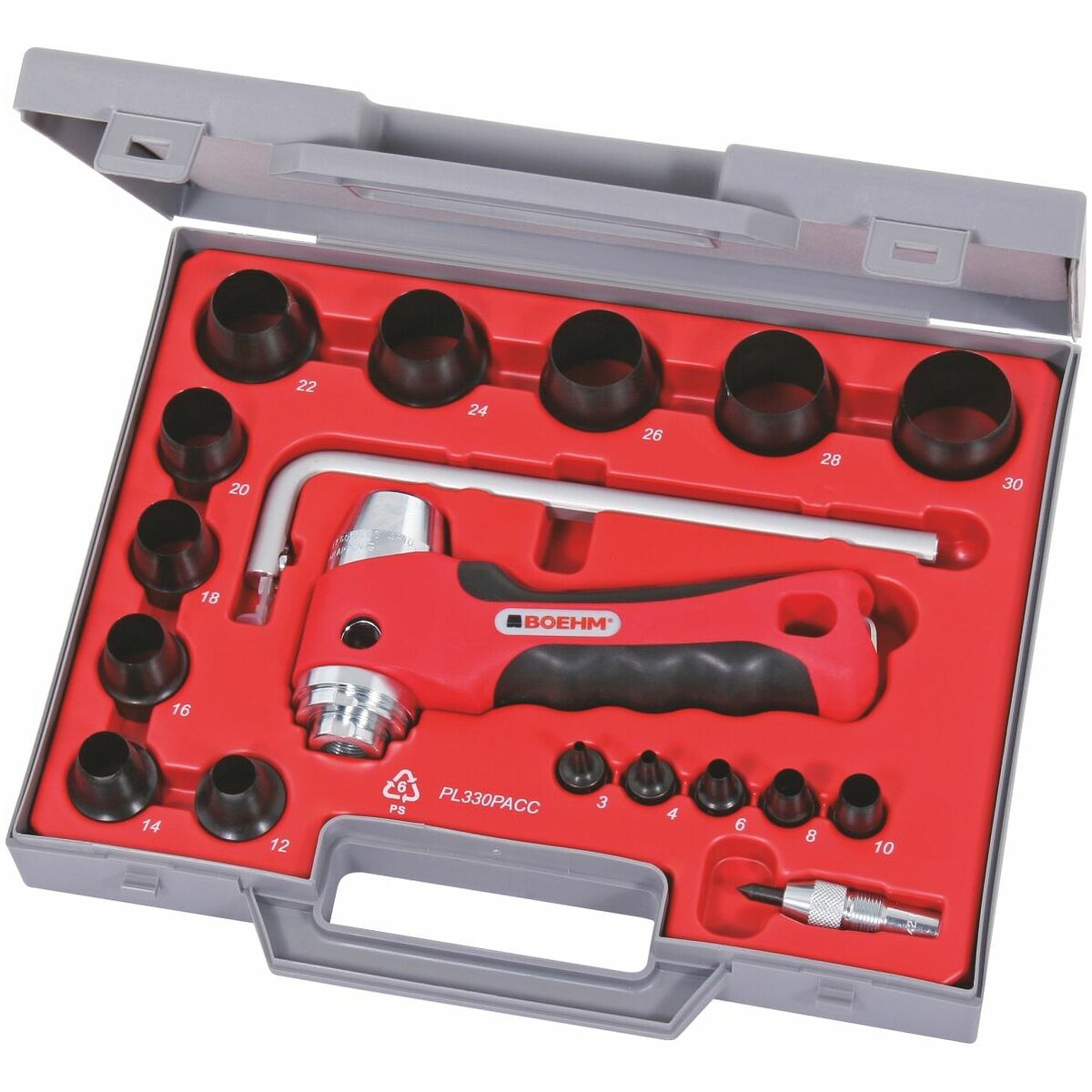

BỘ ĐỤC GIOĂNG LỖ HOÀN CHỈNH TRONG MỘT HỘP TỪ 3-30 MM

Liên hệ

Mã sản phẩm: 832100 3-30-PT
Thương hiệu: BOEHM®
Công nghệ:
Xuất xứ:
Bảo hành: Default Title
Trọng lượng:

Version:2-component holder (up to size 3-20) with pistol handle with exchangeable precision ground punch cutters. For the production of gaskets two punch cutters of different ⌀ are inserted together i...

Version:

2-component holder (up to size 3-20) with pistol handle with exchangeable precision ground punch cutters. For the production of gaskets two punch cutters of different ⌀ are inserted together in the holder.

Application:

For punching or manufacturing discs / rings in one operation. For rubber, leather, felt, plastic, cork, fabric or similar materials.

Supplied with:

1 each punch cutter ⌀ No.

832110:

15 pcs.

size 3; 4; 6; 8; 10; 12; 14; 16; 18; 20; 22; 24; 26; 28; 30Available combinations of punches inner :

outer (mm):

3−10 inner with 12−30 outer 12−20 inner with 22−30 outerContainer length×width×height (mm):

Plastic 275×205×50Centring point No.

832140:

1 pc.

1 each circle cutter ⌀:

55−330 mm Note:

Use an underlay of wood, leather etc. when punching to avoid damage.

The following combinations are not possible:

20 (inner) with 22 (outer); 30 (inner) with 32 (outer); 40 (inner) with 42 (outer); 50 (inner) with 52 (outer).

Thông tin kỹ thuật

Mô tả

Version:

Application:

For punching or manufacturing discs / rings in one operation. For rubber, leather, felt, plastic, cork, fabric or similar materials.

Supplied with:

1 each punch cutter ⌀ No.

832110:

15 pcs.

size 3; 4; 6; 8; 10; 12; 14; 16; 18; 20; 22; 24; 26; 28; 30Available combinations of punches inner :

outer (mm):

3−10 inner with 12−30 outer 12−20 inner with 22−30 outerContainer length×width×height (mm):

Plastic 275×205×50Centring point No.

832140:

1 pc.

1 each circle cutter ⌀:

55−330 mm Note:

Use an underlay of wood, leather etc. when punching to avoid damage.

The following combinations are not possible:

20 (inner) with 22 (outer); 30 (inner) with 32 (outer); 40 (inner) with 42 (outer); 50 (inner) with 52 (outer).
