Version:
Measuring stand:
With fine setting adjustment and holder bore 8 H7.
The cross arm is full adjustable for height and in all lateral directions.

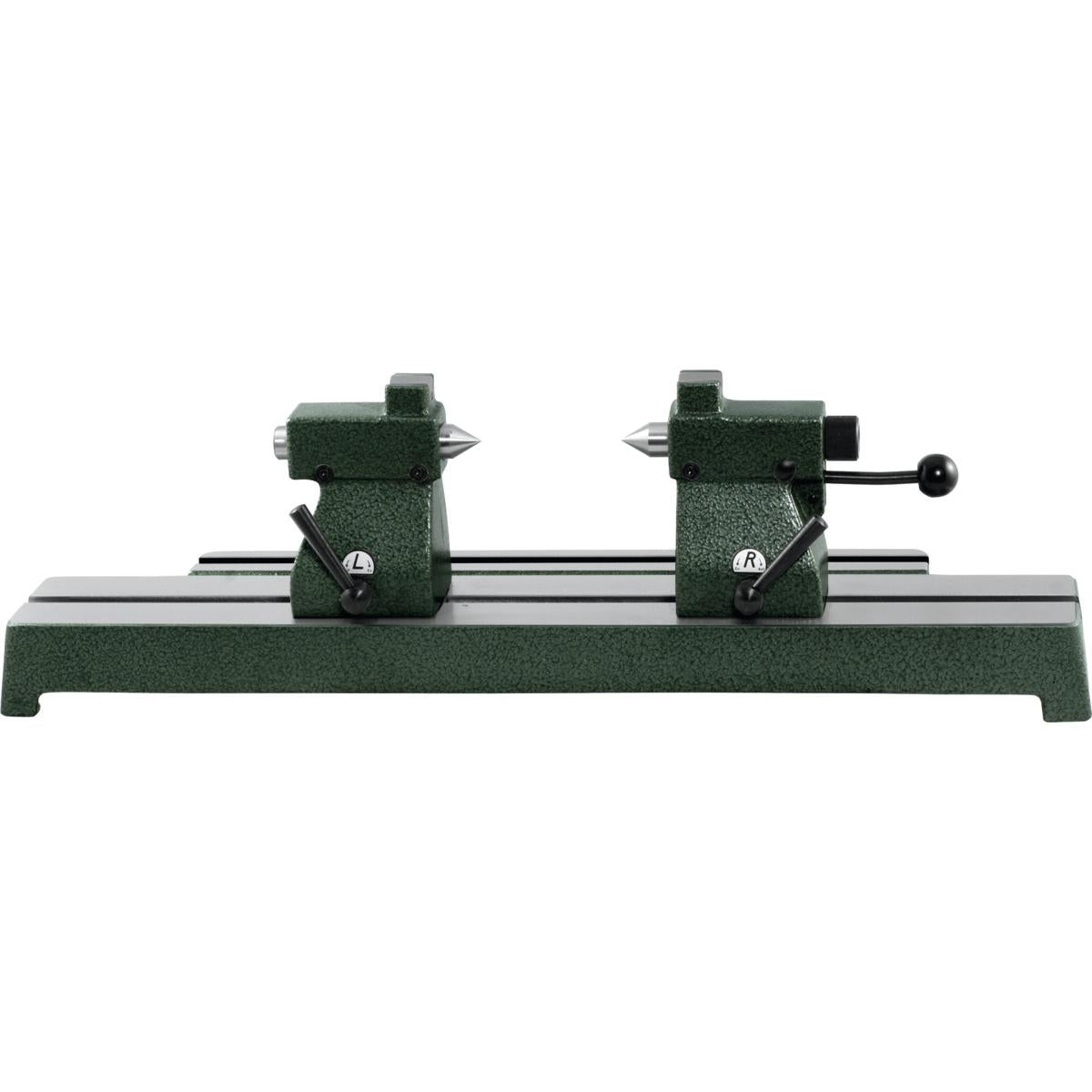

Tailstocks:
adjustable.
Left tailstock with fixed centre, right tailstock with axially movable quill.
Measuring bench:
Precision ground, with 2 T-slots.
To take the tailstocks (tolerance H7) or the stand.
Flatness to DIN 876/1.
Application:
For measuring round and plane accuracy as well as for comparative tests of parallelism and diameter.
Supplied with:
Bench, measuring stand.
Tailstocks with 90° Vee blocks at the top for holding off-centred or overhanging parts (max.
workpiece ⌀ 20 mm).
