BỘ 23 CHI TIẾT VÀ CẦN SIẾT LỰC GẮN BIT 6.35MM 12NM A2 WERA 05075832001 | 05075832001

Version:

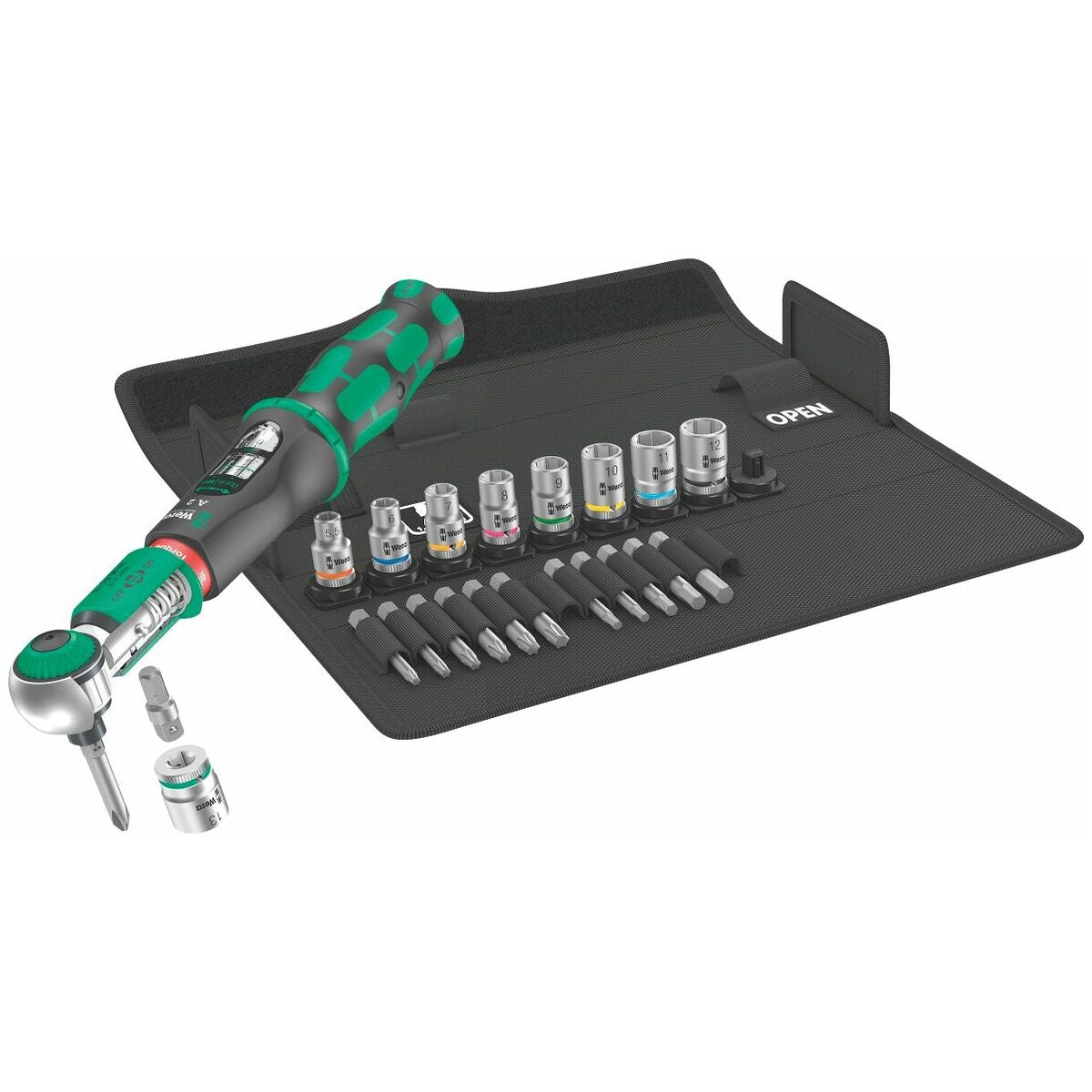

The special slipping trigger mechanism reliably prevents unintentional overtightening. Desired torque value is easily set and saved as the user can hear and feel the device engage upon reaching the scale value. The 72 fine-pitched teeth enable a low return angle of only 5°. With 1/4 inch bit holder. 23-piece set incl. torque wrench Safe-Torque A 2.

Advantage:

Torque lock function:

The torque function can be switched off – the tool can therefore also be used as a standard ratchet with high release torques and for applications involving defined rotational angles.

Function:

On reaching the set torque value the wrench triggers a clearly detectable deflection and is then immediately ready for use again. The overslip trigger mechanism ensures that the set torque values are not exceeded.

Standard:

Tested to DIN EN ISO 6789.

Cutting data:

Legend for drawing and formula:

l1 = Lever length without plug-in headl2 = Adjusted reference dimension on the torque wrenchl3 = Lever length including factory calibration reference dimensionl4 = Reference dimension of the plug-in headL = Total length of the toolT1 = Torque to be setT2 = Specified torque Content:

Sockets, hexagon, 1/4 inch:

1 pc. each 5. 5; 6; 7; 8; 9; 10; 11; 12; 13 mm1/4 inch bits for Phillips, shank E 6.

3:

1 pc. PH 2 (length 50 mm)1/4 inch bits for hex socket, shank E 6.

3:

1 pc. each 2. 5; 3; 4; 5; 6 (length 50 mm)1/4 inch bits for Torx®, shank E 6.

3:

1 pc. each TX10; TX15; TX20; TX25; TX27; TX30 (length 50 mm)Adapter with 1/4 inch C 6.

3 hexagon shank:

1 pc.

length 25 mmTorque wrench Safe-Torque A 2:

1 pc. No.

657774 size 12Presented in:

Textile box
