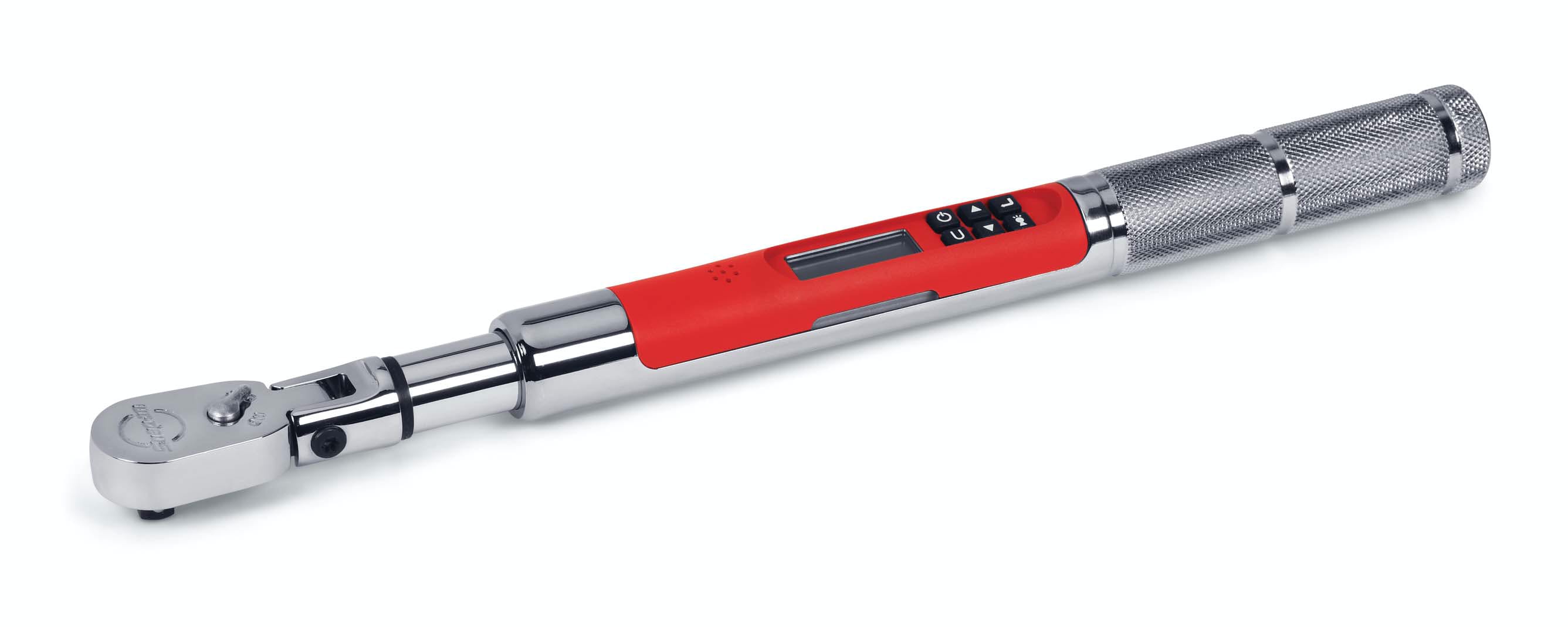

• Compact steel body electronic torque wrench based on ATECH STEEL design; 11.6" L and .90" Diameter
• Ability to get in tight recesses makes it an ideal torque wrench for close clearance applications (valve covers)
• Knurled handle provides a secure, non-slip gripping surface
• 72 tooth gear (1/4" drive) and 80 tooth gear (3/8" drive)
• (4) alert modes (LCD, LED, vibratory, audible)
• Flex yoke design (15°)
• ±2% CW and 3% CCW (20–100% FS)
• (5) scale references (ft-lb, in-lb, N•m, Kg-cm, dNm)
• Same features as existing ATECH series torque wrenches
• Uses (1) AA battery
• Only weighs .93 lb
• Patent pending
• Two year warranty
SPECIFICATIONS:
Range, ft-lb : 1–20
Range, in-lb : 12–240
Gear Action : 5°
Color : Chrome
Country Of Origin : USA
Storage Case : PBATECH240M
Gear Teeth : 72
Battery, Type (qty) : Lithium Metal (1)
Head Depth, inches : 7/16
Length, inches : 11.6
Flex Joint Repair Kit : TECH1FRATA
Head Width, inches : 7/8
Range, N•m : 1.36–27.12
Ratchet Service Kit : RKRTR72A
Head Type : Sealed Flex Head
Square Drive, inches : 1/4
Weight (without batteries), lb (kg) : .93 (.42)
